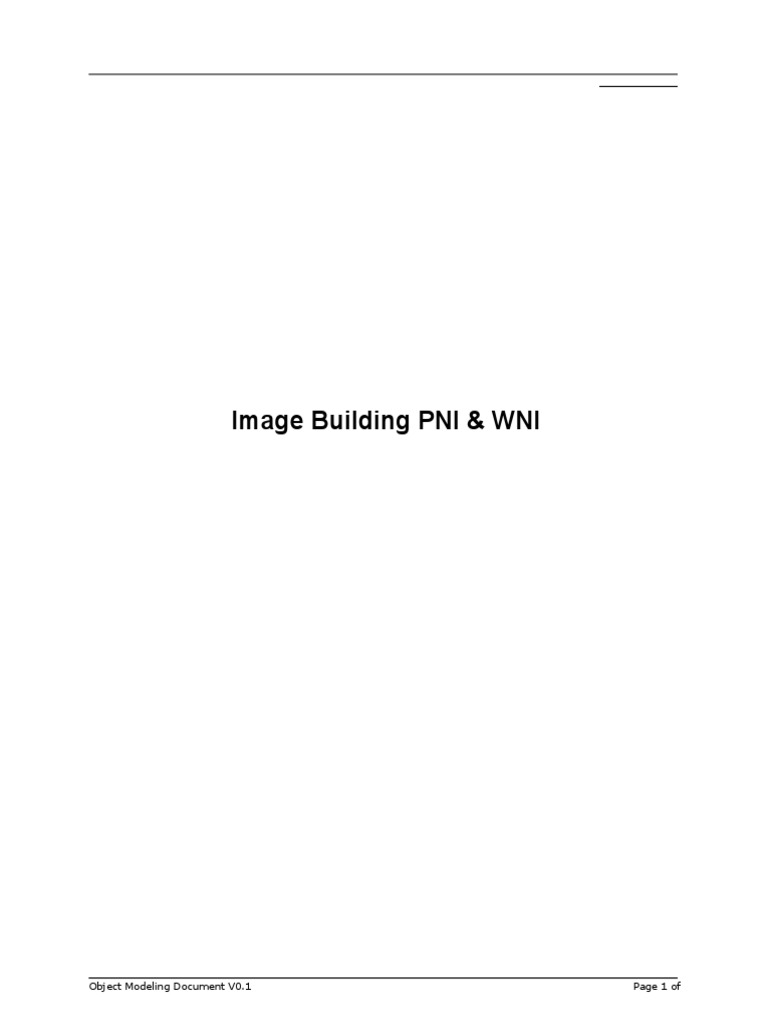

Image Building PNI & WNI
Object Modeling Document V0.1
Page 1 of
Revision History
Version
Release
Date
Author
Reviewed by and Date
1.0
05-09-2009
Abitha
Vijay
Comment
- 25-09-2008
Page 2 of
Contents
1.
2.
3.
4.
Introduction.......................................................................................................4
Configuring the Smallworld...................................................................................5
PNI Image building Process:..................................................................................7
WNI Image Building...........................................................................................13
4.1
Pre-requisites:.................................................................................................13
4.2
Image Building Process......................................................................................13
Page 3 of
1. Introduction
This Document is designed and developed as the Basic Image building process for the PNI and WNI for
Bharti-UGIS. The purpose of the document is to introduce the user to build the PNI (Physical Network
Inventory) and WNI (Wireless Network Inventory) image.
References: For additional information, the following documents may be referred during the usage of this
Manual.
Wireless Network Inventory Product documentation.
Physical Network Inventory Product documentation
Prerequisites: The following Software should be loaded in the system from PNI4.1 CD by using the basic
software installation guidelines.
Smallworld4.1 Core
Physical Network Inventory 4.1
Design Manger 4.1
Page 4 of
2. onfiguring the Smallworld

The following process is to be followed to build the PNI image.
1. Install Small world PNI Product
2. Configure emacs from Smallworld Product
3. Make sure that build_gui alias is available in product\config\gis-aliases
Ex: If the product is installed in D:\ drive then check

D:\Smallworld\product\config\gis_aliases file
4. When gis_aliases file is opened build_gui alias should be there. If build_gui alias is not
present, Copy that from Product\pni410\scripts\gis_aliases.base file as shown below.
5. Open gis_aliases.base file and copy the build_gui alias
Page 5 of
6. Copy the build_gui alias file and paste in Product\config\gis_alias file as shown below
Page 6 of
3. PNI Image building:

1. Open emacs and Click F2 Z .Window will appear as shown in below fig. The default path
at gis command area should be deleted.
2. Give [] gis build_gui command as shown below and Press Enter
3. Build Script Creator window appears as shown below
Page 7 of
4. Set all the required paths and click Create Scripts Button
SW_MODEL_IT_DB_DIR - Data Store on which the image should be build
Scripts will be generated in Product\pni410\scripts folder
5. Before generating of Scripts the directory of the scripts is shown below.
Page 8 of
6. After generating Scripts the directory of the scripts is shown below.
7. Open product\pni410\scripts\gis_aliases file and copy all scripts(except build_gui) and

paste in product\config\gis_aliases file
8. Open the extras_for_environment file
Page 9 of
9. Copy the entire text
10. Paste in product\config\environment.bat file as shown below.
Page 10 of
Page 11 of
11. Change the SW_MESSAGE_DB_DIR path in product\config\environment.bat file. This is

the license path to run the session.
12. Quit the session.

13. Again F2-Z and enter [] gis build_open_pni as shown below and Press Enter.
Page 12 of
14.
PNI Open image is created in the following path product\pni410\images folder.
15. To use the open image enter [] gis pni_open in the E- Macs command prompt.
16. Quit the Session.
17. Build the PNI custom Closed image by using the build_custom_closed_pni
aliases.
Page 13 of
4. WNI Image Building

4.1
4.2
Pre-requisites:
Rwuk_products is copied in the products smallworld folder
Upgraded DS
Image Building Process
1. Copy the content of sample gis_aliases file from

Smallworld\RWUK_products\wni411\product\scripts folder .
Page 14 of
2. Paste in Product\config\gis_aliases file
3. Make sure that the following paths are correct in WNI_411_CLOSED and WNI_411_OPEN
alias
WNI_411_CLOSED:
RWUK_HOME
SW_MODELIT_DB_DIR
IMAGE_DIR
SAVE IMAGE FILE NAME
REDIRECTION FILE NAME
Page 15 of
WNI_411_OPEN:
RWUK_HOME
SW_MODELIT_DB_DIR
IMAGE_DIR
Page 16 of
4. Start E- Macs and give following command in the command prompt

[ ] gis wni_411_closed
Due to pcls consumption problem, we have to increase the pcls on the closed image.
Magiksf > ds_environment.npcls
Magiksf > ds_environment.npcls * << 4
Magiksf > ds_environment.npcls * << 2
Open manage_soc() and set the ds paths where necessary
5. Open the build_open.magik script from
Smallworld\RWUK_products\wni411\product\scripts folder as shown below.
Page 17 of
6. Press F2- B
7. WNI Open image is built and available in product\pni410\images folder
8. Start using the latest image with the following command
[ ] gis wni_411_open
9. Open the External db sets (Oracle) in the manage_soc manually.
10. Load the alternatives_setting.magik file to set the required alternatives. This magik file is
available in the given path.
Smallworld\RWUK_products\wni411\product\scripts\alternatives_setting.magik
11. Save the image by using the same command which is using when building the
wni_411_open image.
save_image_startup("\\Server\Smallworld\pni410\images\main\wni_open_411_MOB_MI
G_OCT08.msf",:redirection_file,"\\Server\Smallworld\pni410\images\wni_open_411
_MOB_MIG_OCT08.msf",:join,:fuse)
Note: Check the image name.
Page 18 of
