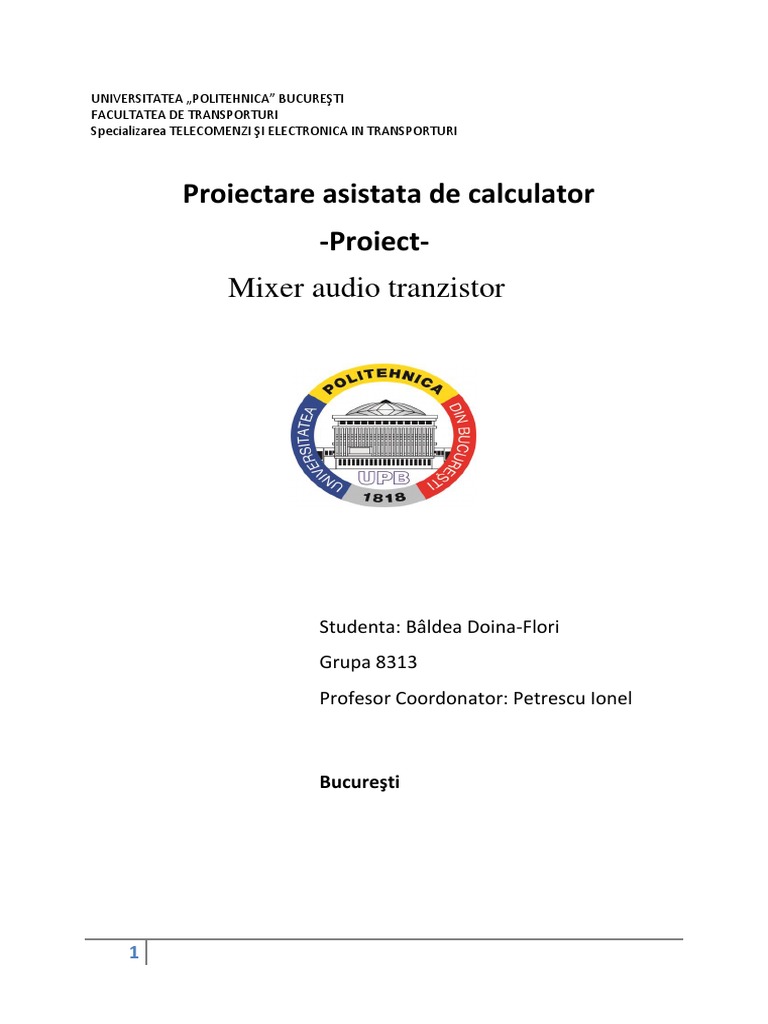

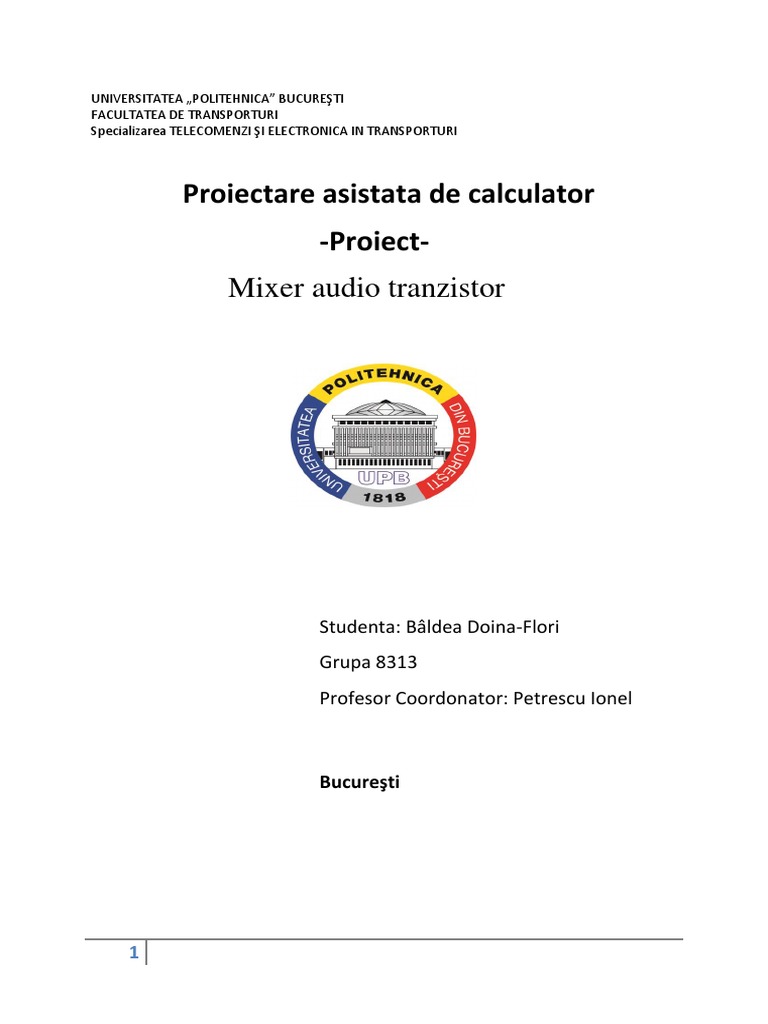

UNIVERSITATEA „POLITEHNICA” BUCUREŞTI

FACULTATEA DE TRANSPORTURI
Specializarea TELECOMENZI ŞI ELECTRONICA IN TRANSPORTURI

Proiectare asistata de calculator

-Proiect-
Mixer audio tranzistor

Studenta: Bâldea Doina-Flori

Grupa 8313
Profesor Coordonator: Petrescu Ionel

Bucureşti

1
 Cuprins

1.Schema elecrică ..................................................................................................................... 3

2.Analiza schemei ..................................................................................................................... 4
3.Fisier out................................................................................................................................. 6
4.Grafice rezultate in urma analizelor ................................................................................... 7
5.Cablajul imprimat ................................................................................................................. 8

2
1.Schema elecrică

Trei sau mai multe intrări cu controale individuale de nivel se alimentează în

baza Q1 care asigură un câștig de tensiune de 20.

3
2.Analiza schemei

Listare fisier cir

*one transistor audio mixter

XP1 1 5 0 POT PARAMS: R=10K POZ={SET}

XP2 2 4 0 POT PARAMS: R=10K POZ={SET}

XP3 3 6 0 POT PARAMS: R=10K POZ={SET}

.PARAM SET=.5

.SUBCKT POT JOS SUS CURSOR PARAMS: R=10K POZ =.5

RA SUS CURSOR {POZ*R}

RB CURSOR JOS {(1-POZ)*R}

.ENDS

*.PARAM SET=.5

*.SUBCKT POT JOS SUS CURSOR +PARAMS:R=10K POZ =.5

*R2 SUS CURSOR{POZ*R}

*R5 CURSOR JOS{POZ*R}

*.ENDS

*.PARAM SET=.5

*.SUBCKT POT JOS SUS CURSOR +PARAMS:R=10K POZ =.5

*R3 SUS CURSOR{POZ*R}

*R6 CURSOR JOS{POZ*R}

4
*.ENDS/

R4 5 8 22k

R5 4 8 22K

R6 6 8 22k

R7 9 10 1M

R8 10 11 2.2k

R9 12 0 4

V1 1 0 ac 1v sin(0v,1v,10hz,0.5s,5,30)

V2 2 0 ac 1v sin(0v,1v,1hz,0.5s,5,30)

V3 3 0 ac 1v sin(0v,1v,50hz,0.5s,5,30)

V4 10 0 9

C1 11 12 5u

C2 10 0 100u

C3 9 8 5u

Q1 11 9 0 QINT

.LIB "EVAL.LIB"

.MODEL QINT NPN(BF=400)

.TRAN 0.2S 1S

.AC LIN 5 .1HZ 1HZ

.DC V4 0v 12v 2v

.PRINT DC I(R9)

.OP

.PROBE

.END

5
 3.Fisier out

 SMALL SIGNAL BIAS SOLUTION TEMPERATURE = 27.000 DEG C

NODE VOLTAGE NODE VOLTAGE NODE VOLTAGE NODE VOLTAGE

( 1) 0.0000 ( 2) 0.0000 ( 3) 0.0000 ( 4) 0.0000

( 5) 0.0000 ( 6) 0.0000 ( 8) 0.0000 ( 9) 1.2025

( 10) 9.0000 ( 11) .0179 ( 12) 0.0000

 INITIAL TRANSIENT SOLUTION TEMPERATURE = 27.000 DEG C

NODE VOLTAGE NODE VOLTAGE NODE VOLTAGE NODE VOLTAGE

( 1) .5000 ( 2) .5000 ( 3) .5000 ( 4) 0.0000

( 5) 0.0000 ( 6) 0.0000 ( 8) 0.0000 ( 9) 1.2025

( 10) 9.0000 ( 11) .0179 ( 12) 0.0000

 DC TRANSFER CURVES TEMPERATURE = 27.000 DEG C

V4 I(R9)

0.000E+00 0.000E+00

2.000E+00 0.000E+00

4.000E+00 0.000E+00

6.000E+00 0.000E+00

8.000E+00 0.000E+00

1.000E+01 0.000E+00

1.200E+01 0.000E+00

6
4.Grafice rezultate in urma analizelor

Analiza in regim tranzitoriu

Analiza in curent continuu

7
Analiza in curent alternativ

5.Cablajul imprimat
