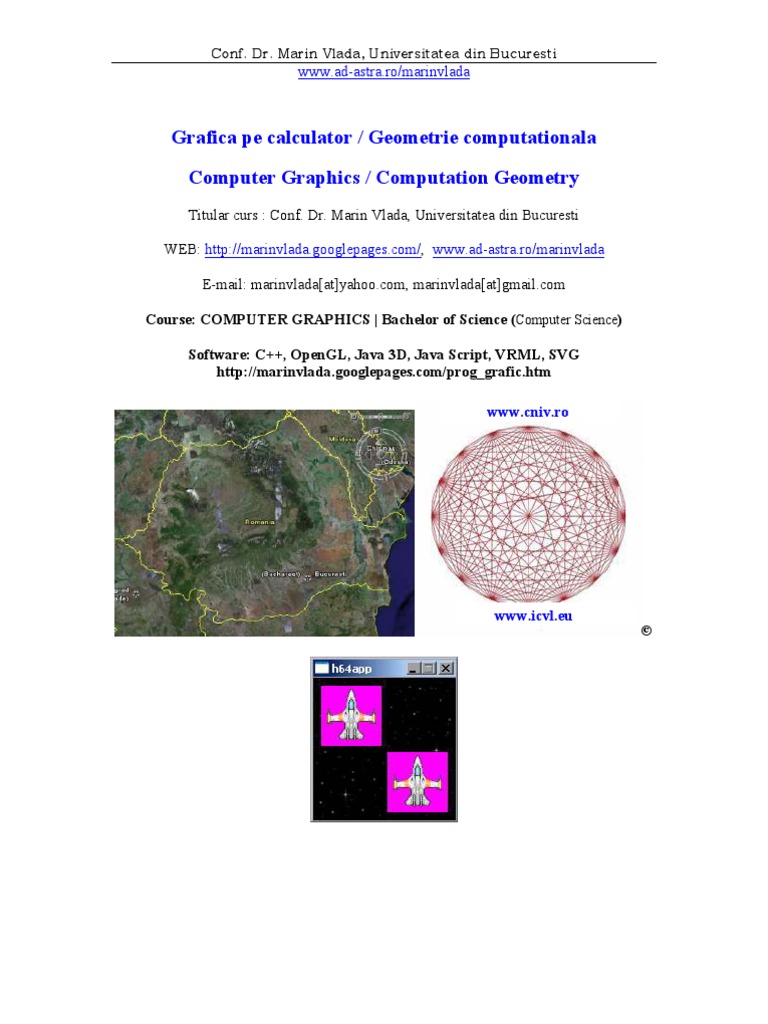

Grafica pe calculator / Geometrie computationala
Computer Graphics / Computation Geometry

Titular curs : Conf. Dr. Marin Vlada, Universitatea din Bucuresti
WEB: http://marinvlada.googlepages.com/, www.ad-astra.ro/marinvlada
E-mail: marinvlada[at]yahoo.com, marinvlada[at]gmail.com
Course: COMPUTER GRAPHICS | Bachelor of Science (Computer Science)
Software: C++, OpenGL, Java 3D, Java Script, VRML, SVG

http://marinvlada.googlepages.com/prog_grafic.htm
www.cniv.ro
www.icvl.eu
©
Conf. Dr. Marin Vlada, Universitatea din Bucuresti
PROIECT – generare litere folosind curbe B-spline

Nota: Codul in C++
Curbe B-spline si aplicatii

Fata de curbele Bezier, curbele B-spline sunt descrise prin functii polinomiale (de gr. II
si III) definite pe portiuni.
Curbele B-spline de gradul II (parabolice) sunt utilizate la generarea caracterelor
pentru fonturile True Type ( .ttf) din sistemul Windows, iar curbele B-spline de gradul
III (cubice) sunt utilizate la generarea caracterelor pentru fonturile PostScript ( .ps).
Curbele B-spline de gradul II (parabolice)
Daca se considera o linie poligonala formata din 3 puncte Pi(xi, yi), i=1,2, 3, atunci
aceasta se aproximeaza cu o curba B-spline ce are o extremitate in mijlocul segmentului
P1 P2, iar cealalta extremitate se afla in mijlocul segmentului P2 P3 , curba fiind un arc
de parabola (curba de gradu II) definit de drumul (aplicatia) :
γ : [0,1] R2, unde γ (t) = (x(t), y(t)),
x(t) = a x1 + b x2 + c x3
y(t) = a y1 + b y2 + c y3 , pentru t ∈ [0,1] , notatiile fiind
a = (1 – 2t + t2 )/2 , b = (1 + 2t -t2 ) /2, c = t2 /2, a+b+c = 1
P2
P1 P3
Evident, pentru t=0 si t=1 avem, respectiv

γ (0) = (x(0), y(0)), x(0) = (x1 + x2)/2 , y(0) = (y1+y2)/2 si
γ (1) = (x(1), y(1)), x(1) = (x2 + x3)/2 , y(1) = (y2+y3)/2
Definitie.
Linia poligonala P = P1 P2 ... Pn , unde Pi(xi, yi), i=1,2, … ,n , se aproximeaza cu o
curba B-spline γ = γ1 ∪ γ 2 ∪ ... ∪ γn-2 , avand urmatoarele proprietati ;
a) are extremitatile in mijloacele segmentolor P1 P2 si Pn-1 Pn ;
b) segmentele Pi Pi+1 , i=1,2, …, n-1 sunt tangente la curba in mijloacele segmentelor Pi
Pi+1.
c) curba este definita pe portiuni de γi : [0,1] R2, unde γi (t) = (x(t), y(t)),
i=1,2, … ,n-2 si
x(t) = a xi + b xi+1 + c xi+2
y(t) = a yi + b yi+1 + c yi+2 , pentru t ∈ [0,1] , notatiile fiind
a = (1 – 2t + t2 )/2 , b = (1 + 2t -t2 ) /2, c = t2 /2, a+b+c = 1
In figura urmatoare se prezinta aceste proprietati.
P2 P4 . . . . . Pn -2 Pn
γ1 γ2 γ3 γn-2
P1 P3 Pn -1
Programul realizeaza generarea literelor mari de tip cursiv prin citirea coordonatelor
unor puncte ce reprezinta o linie poligonala cu punctele aflate pe conturul literei. Un
exemplu de astfel de litere este prezentat mai jos.
Program litereM.cpp
#include <graphics.h>
#include <conio.h>
#include <math.h>
#include <iostream.h>
int gd, gm;
int n, i, j, k, ii, d, max, xx, yy;
int x[200];
int y[200];
float a, b, c, p, t;
int round(float nr)

{
int aux=nr;
nr=nr*10;
int val=(int)nr % 10;
if (val>=0&&val<5) return aux; else return aux+1;
}
int LUNG() // pentru pasul de discretizare; nr. de diviziuni

{
max = 0;
for (int ii = i; ii <= i+1; ii++)
{
d = abs ( x[ii] - x[ii+1] );
if (d > max) max = d;
d = abs ( y[ii] - y[ii+1] );
if (d > max) max = d;
}
return max;
}
void CURBA()
{
p = 1 / LUNG(); // pasul de discretizare pe [0,1]
t = 0; //{initializare; parcurgerea intervalului [0,1] }
for (ii = 1; ii <= LUNG(); ii++)
{
a = 1 - t ; a = (a*a)/2; c = (t*t)/2 ; b = 1 - a - c:
xx = round (a*x[i] + b*x[j] + c*x[k]);
yy = getmaxy() - round( a*y[i] + b*y[j] + c*y[k]);
lineto ( xx, yy) ;// { se traseaza linie }
t = t + p;
}
}
void main()
{
cout <<" Dati nr. de puncte n= ";
cin >>n;
cout <<" Dati coordonatele punctelor ";
for(i = 1; i <= n; i++)
{
cin >> x[i];
cin >> y[i];
}
gd = DETECT;
initgraph (&gd, &gm, "C:\\Borlandc\\bgi");
moveto (x[1],getmaxy()-y[1]);
xx = round((x[1]+x[2])/2);
yy = getmaxy ()-round((y[1]+y[2])/2);
lineto(xx, yy);
for(i = 1; i <= n-2; i++)
{
j:=i+1; k:=i+2;
CURBA ();
}
lineto(x[n],getmaxy()-y[n]);
getch();
closegraph();
}
Date pentru testare ( nr. puncte si coordonate)

13 13
150 300 150 180 15
125 350 125 130 130 330
150 400 150 80 180 380
225 350 225 130 250 410
230 220 230 260 300 380
240 150 240 330 320 330
280 75 280 405 310 290
320 150 320 330 280 250
330 220 330 260 230 200
335 350 335 130 130 220
410 400 410 80 230 230
435 350 435 130 280 130
410 300 410 180 320 90
5 5 340 120
140 260 140 220 330 140
210 210 210 270 310 110
280 235 280 245 5
350 260 350 220 10 10
420 210 420 270 100 200
4 4 200 10
100 100 100 100 250 200
130 85 130 85 300 10
160 110 160 110
210 350 210 350
15 15
130 330 130 330
180 380 180 380
250 410 250 410
300 380 300 380
320 330 320 330
310 290 310 290
280 250 280 250
230 200 230 200
130 220 130 220
230 230 230 230
280 130 280 130
320 90 320 90
340 120 340 120
330 140 330 140
310 110 310 110
PROIECT – generare litere mici - editare

Nota: Codul in C++
Programul realizeaza generarea literelor mici de tip cursiv prin citirea dintr-un fisier a
unui numar de puncte ce reprezinta o linie poligonala cu punctele aflate pe conturul
literei.
Programul litere.cpp // utilizeaza curbe B-spline parbolice

#include<stdio.h>
#include<dos.h>
#include<graphics.h>
#include<stdlib.h>
#include<io.h>
#include<conio.h>
#include<ctype.h>
int n,i,j,k,ii,d,max,x=1,y=450,xx,yy,x1[100],y1[100];
float a,b,c,p,t;
//functie "round" pentru rotunjire

//----------------------------------------------------
int round(float nr)
{
int aux=nr;
nr=nr*10;
int val=(int)nr % 10;
if (val>=0&&val<5) return aux; else return aux+1;
} //sfarsit functie round
//----------------------------------------------------
//functie "lung"
//----------------------------------------------------
int lung() // determina numarul de diviziuni ptr. discretizare
{
max=0;
for (int ij=i;ij<=i+1;ij++)
{
d =abs(x+x1[ij]-(x+x1[ij+1]));
if (d>max) max=d;
d=abs(y+y1[ij]-(y+y1[ij+1]));
if (d>max) max=d;
}
return max;
} //sfarsit functie lung
//-----------------------------------------------
//procedura "curba"
//-----------------------------------------------
void curba()
{
p=1.0/lung(); // pasul de discretizare
t=0;
for (ii=1;ii<=lung();ii++)
{
a=1-t;
a=(a*a)/2;
c=(t*t)/2;
b=1-a-c:
xx=round(a*(x+x1[i])+ b*(x+x1[j])+c*(x+x1[k]));
yy=getmaxy()-round(a*(y+y1[i])+b*(y+y1[j])+c*(y+y1[k]));
lineto(xx,yy);
t=t+p;
}
} //sfarsit procedura curba
//---------------------------------------------------
// procedura "litera"
//---------------------------------------------------
void litera(int x2,int y2,FILE *fp)
{
fscanf(fp,"%d",&n);
while (n !=5000)
{
for (i=1;i<= n;i++)

fscanf(fp," %d %d",&x1[i],&y1[i]);
moveto(x2+x1[1],getmaxy()-(y2+y1[1]));
xx=round(((x2+x1[1])+(x2+x1[2]))/2);
yy=getmaxy()-round(((y2+y1[1])+(y2+y1[2]))/2);
lineto(xx, yy);
for(i =1;i<=n-2;i++)
{
j=i+1;k=i+2;
curba();
}
//lineto(x2+x1[n],getmaxy()-y2+y1[n]);
fscanf(fp,"%d",&n);
}
}//sfarsit procedura litera
//-----------------------------------------------
//partea principala "main"

void main(){
FILE *f;
char *c:
int gdriver = DETECT, gmode, errorcode,ch,bool=1,val;
initgraph(&gdriver, &gmode, "c:\\borlandc\\bgi");
errorcode = graphresult();
if (errorcode != grOk)
{
printf("Graphics error: %s\n", grapherrormsg(errorcode));
printf("Press any key to halt:");
getch();
exit(1);
}
for(int i1=1; i1<=15; i1++)

{
setcolor(i1);
setfillstyle(1,i1);
circle(i1*18,30,5);
fillellipse(i1*18,30,5,5);
outtextxy(i1*18-3,38,itoa(i1,c,10));
outtextxy(20,48,"Alegeti una din culorile de mai sus pentru
editare prin scirerea cifrei!!!");
}
gotoxy(2,5);
printf("Culoare=");
scanf("%d",&val);
delay(400); // asteptare …
cleardevice();
setcolor(val);
outtextxy(20,48,"Puteti incepe editarea!!!");
sleep(2);
cleardevice();
while(bool)
{
ch=toascii(getch());
if (!kbhit())
{
switch(ch)
{
case 32 : if ((x+=20)>getmaxx()-30) {x=1;y-=30;};
if (y<50) {cleardevice();y=450;}
break;
case 97 : f=fopen("c:\\borlandc\\bin\\a.txt","r");
litera(x,y,f);
fclose(f);
if ((x+=20)>getmaxx()-30) {x=1;y-=30;};
break;
case 98 : f=fopen("c:\\borlandc\\bin\\b.txt","r");
litera(x,y,f);
fclose(f);
if ((x+=20)>getmaxx()-30) {x=1;y-=30;};
break;
case 99 : x=x-8;
f=fopen("c:\\borlandc\\bin\\c.txt","r");
litera(x,y,f);
fclose(f);
if ((x+=20)>getmaxx()-30) {x=1;y-=30;};
break;
case 100 :f=fopen("c:\\borlandc\\bin\\d.txt","r");
litera(x,y,f);
fclose(f);
if ((x+=20)>getmaxx()-30) {x=1;y-=30;};
break;
case 101 :f=fopen("c:\\borlandc\\bin\\e.txt","r");
litera(x,y,f);
fclose(f);
if ((x+=18)>getmaxx()-30) {x=1;y-=30;};
break;
case 102 :f=fopen("c:\\borlandc\\bin\\f.txt","r");
litera(x,y,f);
fclose(f);
if ((x+=19)>getmaxx()-30) {x=1;y-=30;};
break;
case 103 :f=fopen("c:\\borlandc\\bin\\g.txt","r");
litera(x,y,f);
fclose(f);
if ((x+=17)>getmaxx()-30) {x=1;y-=30;};
break;
case 104 :f=fopen("c:\\borlandc\\bin\\h.txt","r");
litera(x,y,f);
fclose(f);
if ((x+=19)>getmaxx()-30) {x=1;y-=30;};
break;
case 105 :f=fopen("c:\\borlandc\\bin\\i.txt","r");
litera(x,y,f);
putpixel(x+11,getmaxy()-y-20,15);
fclose(f);
if ((x+=20)>getmaxx()-30) {x=1;y-=30;};
break;
case 106 :f=fopen("c:\\borlandc\\bin\\j.txt","r");
litera(x,y,f);
putpixel(x+11,getmaxy()-y-20,15);
fclose(f);
if ((x+=16)>getmaxx()-30) {x=1;y-=30;};
break;
case 107 :f=fopen("c:\\borlandc\\bin\\k.txt","r");
litera(x,y,f);
fclose(f);
if ((x+=20)>getmaxx()-30) {x=1;y-=30;};
break;
case 108 :f=fopen("c:\\borlandc\\bin\\l.txt","r");
litera(x,y,f);
fclose(f);
if ((x+=20)>getmaxx()-30) {x=1;y-=30;};
break;
case 109 :f=fopen("c:\\borlandc\\bin\\m.txt","r");
litera(x,y,f);
fclose(f);
if ((x+=20)>getmaxx()-30) {x=1;y-=30;};
break;
case 110 :f=fopen("c:\\borlandc\\bin\\n.txt","r");
litera(x,y,f);
fclose(f);
if ((x+=17)>getmaxx()-30) {x=1;y-=30;};
break;
case 111 :f=fopen("c:\\borlandc\\bin\\o.txt","r");
litera(x,y,f);
fclose(f);
if ((x+=18)>getmaxx()-30) {x=1;y-=30;};
break;
case 112 :f=fopen("c:\\borlandc\\bin\\p.txt","r");
litera(x,y,f);
fclose(f);
if ((x+=20)>getmaxx()-30) {x=1;y-=30;};
break;
case 113 :f=fopen("c:\\borlandc\\bin\\q.txt","r");
litera(x,y,f);
fclose(f);
if ((x+=20)>getmaxx()-30) {x=1;y-=30;};
break;
case 114 :f=fopen("c:\\borlandc\\bin\\r.txt","r");
litera(x,y,f);
fclose(f);
if ((x+=20)>getmaxx()-30) {x=1;y-=30;};
break;
case 115 :f=fopen("c:\\borlandc\\bin\\s.txt","r");
litera(x,y,f);
fclose(f);
if ((x+=20)>getmaxx()-30) {x=1;y-=30;};
break;
case 116 :f=fopen("c:\\borlandc\\bin\\t.txt","r");
litera(x,y,f);
fclose(f);
if ((x+=20)>getmaxx()-30) {x=1;y-=30;};
break;
case 117 :f=fopen("c:\\borlandc\\bin\\u.txt","r");
litera(x,y,f);
fclose(f);
if ((x+=20)>getmaxx()-30) {x=1;y-=30;};
break;
case 118 :f=fopen("c:\\borlandc\\bin\\v.txt","r");
litera(x,y,f);
fclose(f);
if ((x+=20)>getmaxx()-30) {x=1;y-=30;};
break;
case 119 :f=fopen("c:\\borlandc\\bin\\w.txt","r");
litera(x,y,f);
fclose(f);
if ((x+=20)>getmaxx()-30) {x=1;y-=30;};
break;
case 120 :f=fopen("c:\\borlandc\\bin\\x.txt","r");
litera(x,y,f);
fclose(f);
if ((x+=20)>getmaxx()-30) {x=1;y-=30;};
break;
case 121 :f=fopen("c:\\borlandc\\bin\\y.txt","r");
litera(x,y,f);
fclose(f);
if ((x+=20)>getmaxx()-30) {x=1;y-=30;};
break;
case 122 :f=fopen("c:\\borlandc\\bin\\z.txt","r");
litera(x,y,f);
fclose(f);
if ((x+=20)>getmaxx()-30) {x=1;y-=30;};
break;
case 13 : x=1;
if((y=y-30)<50) {cleardevice();y=450;}
break;
default: bool=0;
}
}
};
closegraph();
}
Fsiere de intrare :
15 fisiere pentru generarea literelor A-O de tip cursiv

OBSERVATIE : f=fopen("c:\\borlandc\\bin\\a.txt","r");
sfarsit de fisier= 5000
a.txt b.txt c.txt d.txt e.txt

15 12 c.txt 13 10
20 7 0 7 20 7 0 3
19 2 1 1 7 19 2 1 1
14 0 5 0 20 6 14 0 5 0
11 2 13 13 19 1 11 2 13 13
12 3 10 28 15 0 12 3 10 17
12 9 3 13 7 4 12 8 3 13
11 14 14 0 10 17 5 16 14 0
5 17 18 5 15 16 0 7 18 5
1 13 16 9 17 13 1 1 16 9
-1 7 15 7 5000 6 0 15 7
1 1 17 5 11 1 5000
6 0 22 8 12 3
11 1 5000 12 45
12 3 5000
12 15
5000
f.txt g.txt h.txt i.txt j.txt

15 15 15 11 j.txt
0 3 11 2 0 7 1 6
1 1 12 3 1 1 2 1 11
5 0 12 8 5 0 5 0 1 6
13 13 5 16 13 13 9 2 2 1
10 28 0 7 10 28 11 6 5 0
4 13 1 1 3 13 11 16 11 16
7 4 6 0 8 4 11 6 11 6
7 -2 11 1 8 -2 10 2 11 -7
7 -7 12 5 8 4 15 0 9 -10
7 -2 12 -7 11 8 19 1 5 -4
7 4 9 -10 14 4 20 7 9 0
8 1 5 -4 15 3 5000 12 5
13 0 9 0 14 0 22 7
19 2 12 5 17 0 5000
15 6 22 7 21 5
5000 5000 5000
k.txt l.txt m.txt n.txt o.txt

17 9 14 10 11
0 7 0 7 0 8 0 8 10 14
1 1 1 1 3 16 3 16 14 11
5 0 5 0 5 11 5 11 12 4
13 13 13 13 5 0 5 0 8 0
10 28 10 28 5 11 5 11 2 1
3 13 3 13 7 16 7 16 0 6
8 4 14 0 10 11 10 11 2 12
8 -2 18 5 10 0 10 3 4 18
8 4 22 7 10 11 15 0 12 15
11 8 5000 13 16 17 11 8 7
14 4 15 11 5000 25 11
15 3 15 3 5000
10 2 17 0
15 1 22 11
14 0 5000
17 -1
23 5
5000
Proiect - EDITOR si curbe B-spline

Nota: Codul in Pascal/Delphi
{program editor introd. puncte plus aproximarea liniei

poligonale cu curbe bspline
-initial cursorul se pozitioneaza in mijloc
-se misca cu tastele sageti
-se pozitioneaza pe punct cu enter
-se termina introducerea punctelor cu tasta ESC
-programul se termina cu tasta ENTER
}
uses crt,graph;
const esc=#27;
enter=#13;
sus=#72;
jos=#80;
dr=#77;
st=#75;
raz=5;
var gd,gm:integer;
ii,i,j,k,d,max,xx,yy:integer;
x,y,xu,yu:integer;
lx,ly:integer;
ch:char;
vx:array[0..100]of integer;
vy:array[0..100]of integer;
nk:integer;
a,b,c,p,t:real;
function lung:integer;
begin
max:=0;
for ii:=i to i+1 do
begin
c:=abs(vx[ii]-vx[ii+1]);
if d>max then max:=d;
c:=abs(vy[ii]-vy[ii+1]);
if d>max then max:=d;
end;
lung:=max;
end;
procedure curba;
begin
p:=1/lung;
t:=0;
for ii:=1 to lung do
begin
a:=1-t;a:=(a*a)/2;c:=(t*t)/2;b:=1-a-c:
xx:=round(a*vx[i]+b*vx[j]+c*vx[k]);
yy:=round(a*vy[i]+b*vy[j]+c*vy[k]);
lineto(xx,yy);
t:=t+p;
end;
end;
procedure bspline;
begin
moveto(vx[1],vy[1]);
xx:=round((vx[1]+vx[2])/2);
yy:=round((vy[1]+vy[2])/2);
lineto(xx, yy);
for i:=1 to nk-2 do
begin
j:=i+1;k:=i+2;
curba;
end;
lineto(vx[nk],vy[nk]);
end;
procedure draw_cursor(xc,yc:integer);
begin
moveto (xc,yc);linerel(lx,0);
moveto (xc,yc);linerel(-lx,0);
moveto (xc,yc);linerel(0,ly);
moveto (xc,yc);linerel(0,-lx);
end;
BEGIN
gc:=detect;
initgraph(gd,gm,'c:\TP\BGI');
lx:=(getmaxx+1)div 50;
ly:=(getmaxy+1)div 50;
SetWriteMode(XorPut);
x:=GetMaxX div 2;
y:=GetMaxY div 2;
nk:=1;
repeat
draw_cursor(x,y);
ch:=readkey;
xu:=x;
yu:=y;
case ch of
enter:begin
if nk=1 then
begin
VX[nK]:=XU;
VY[nK]:=YU;
nk:=nk+1;
circle(xu,yu,raz);
end
else
begin
circle(xu,yu,raz);
line(vx[nk-1],vy[nk-1],xu,yu);
VX[NK]:=XU;
VY[NK]:=YU;
nK:=nK+1;
end;
end;
sus:begin
yu:=y-5;
end;
jos:begin
yu:=y+5;
end;
dr:begin
xu:=x+7;
end;
st:begin
xu:=x-7;
end;
end;
draw_cursor(x,y);
x:=xu;
y:=yu;
until ch=esc:
cleardevice;
SetWriteMode(NormalPut);
NK:=NK-1;
bspline;
readln;
closegraph;
END.
PROIECT –jocul “sarpe”

Nota: Codul in C++
Sarpe.cpp
#include<conio.h>
#include<stdlib.h>
#include<dos.h>
#include<stdio.h>
#include<graphics.h>
#include<ctype.h>
int ch,i,j,f,r,a[10][2],s=0,len=30;
unsigned int time0=0;
FILE *fp;
struct q
{
int x1,x2,y1,y2;
}q[100]={320,320,210,210},t={320,320,210,210},c;
void push(struct q t);

struct q pop(void);
void sq(void);
void chk(void);
void initializare()
{
int gdriver = DETECT, gmode, errorcode;
initgraph(&gdriver, &gmode, "c:\\borlandc\\bgi");
if (errorcode != grOk)
{
printf("Eroare: %s\n", grapherrormsg(errorcode));
printf("Apasa orice tasta pentru iesire!");
getch();
exit(1);
}
}
void push(struct q t)
{
f++;
q[f].x1=t.x1;
q[f].y1=t.y1;
q[f].x2=t.x2;
q[f].y2=t.y2;
};
struct q pop(void)
{
r++;
return(q[r-1]);
};
//procedura de verificare
void chk(void)
{
for(i=0;i<15;i++)
{
//verifica daca s-a capturat ceva
if (((c.x2 - a[i][0] < 4) && (c.x2 - a[i][0] > - 4)) &&
((c.y2 - a[i][1] < 4) && (c.y2 - a[i][1] > - 4)) && a[i][0] != 0)
{
s++;
len+=4;
time0=time0-25;
delay(50);
gotoxy(65,5);
printf(" \a Score : %d",s);
if(s >= 10)
{
closegraph();
printf("Felicitari ai castigat!");
printf(" \nApasa orice tasta pentru a iesi!");
while(!kbhit())
{
sound(random(2000));
delay(100);
}
nosound();
exit(0);
}
setcolor(WHITE);
circle(a[i][0],a[i][1],2);
a[i][0]=a[i][1]=0;
}
}
//verifica daca se intalneste capul cu corpul
for(i=r;i<=f;i++)
{
if ((q[i].x1 == c.x2) && (q[i].y1 == c.y2))
{
closegraph();
exit(0);
}
}
//verifica daca s-a lovit capul de margine

if(c.x2 <= 30 || c.x2 >= 500 || c.y2 <= 20 || c.y2 >= 460)
{
closegraph();
exit(0);
}
}
main()
{
initializare();
randomize();
setbkcolor(LIGHTBLUE);
c.x1=c.x2=320;
c.y1=c.y2=210;
setcolor(YELLOW);
rectangle(30,20,500,460);
setcolor(RED);
for(i=0;i<10;i++)
{
a[i][0]=45+random(450);
a[i][1]=30+random(425);
circle(a[i][0],a[i][1],2);
}
setlinestyle(SOLID_LINE,2,3);
while(1)
{
ch=toascii(getch());
while(!kbhit())
{
t=c;
switch(ch)
{
case 72 : // Sus
t.x1=t.x2;
t.y1=t.y2;
t.y2=t.y1-5;
break;
case 80 : // Jos
t.x1=t.x2;
t.y1=t.y2;
t.y2=t.y1+5;
break;
case 75 : // Stanga
t.y1=t.y2;
t.x1=t.x2;
t.x2=t.x1-5;
break;
case 77 : // Dreapta
t.y1=t.y2;
t.x1=t.x2;
t.x2=t.x1+5;
break;
case 27 :
closegraph(); // Esc
exit(0);
default: printf("\a");break;
}
c=t;
setcolor(LIGHTRED);
push(t);
line(t.x1,t.y1,t.x2,t.y2);
if ((f - r) > len)
{
t=pop();
setcolor(LIGHTBLUE);
line(t.x1,t.y1,t.x2,t.y2);
}
chk();
sq();
delay(50);
gotoxy(65,10);
textcolor(7);
printf("Time : %u",time0++);
if (time0 >= 1200 )
{
closegraph();
delay(2000);
getch();
exit(0);
}
};
};
}
void sq(void)
{
if (r > 8)
{
for(i=r;i<=f;i++)
q[i-r]=q[i];
f=f-r;
r=0;
}
return;
}
PROIECT – sistemul solar

Nota: Codul in C++
Program planete.cpp
#include <stdio.h> /* Program ce simuleaza miscarea de revolutie */

#include <graphics.h> /* a celor 9 planete din sistemul solar */
#include <stdlib.h>
#include <conio.h> /* Program realizat de Irimia Bogdan */
#include <math.h> /* sub indrumarea */
#include <dos.h>
#include <string.h> /* Conf.dr. Vlada Marin */
float rotmercur = 360.0/88.0, rotvenus = 360.0/225.0, rotpamant =

360.0/365.0;
float rotluna = 360.0/28.0, rotmarte = 360.0/686.98;
float rotjupiter = 360.0/4307.0, rotsaturn = 360.0/10731.0;
float roturanus = 360.0/30660.0, rotneptun = 360.0/60115.5;
float rotpluto = 360.0/90465.0;
void soare(int raza)

{
setcolor(14); /* deseneaza soarele */
setfillstyle(1,14);
fillellipse(0,0,raza,raza);
}
//----------------------------------------------------------
/* desenarea planetei */
void drawplanet(float deplasare, int razax, int razay, int culoare, int
raza
,int saturn = 0, int luna = 0)
{
float u=0,x=0, y=0;
u = 2*3.14/360*deplasare;
x = (razax * cos(u));
y = (razay * sin(u));
setcolor(culoare);
setfillstyle(1,culoare);
fillellipse((int)x,(int)y, raza,raza);
if (saturn == 1)
{
setcolor(7);
ellipse((int)x,(int)y, 140,390,11,5);
}
if (luna != 0)
{
setviewport(getmaxx()/4+(int)x+1,
getmaxy()/2+(int)y+64,getmaxx()/2, getmaxy(), 0);
drawplanet(luna, 12,17,59,2);
setviewport( getmaxx()/4+1, getmaxy()/2+64,getmaxx()/2,
getmaxy(),0);
}
}
//-----------------------------------------------------------
/* stergerea planetei */
void delplanet(float deplasare, int razax,int razay, int raza, int
saturn=0,
int luna = 0)
{
float u=0,x=0,y=0;
u = 2*3.14/360 * deplasare;
setcolor(0);
setfillstyle(1,0);
fillellipse(x, y, raza, raza);
setcolor(0);
if (saturn == 1)
ellipse(x,y, 140,390,11,5);
if (luna != 0)
{
setviewport( getmaxx()/4+(int)x+1, getmaxy()/2+(int)y+64,
getmaxx()/2, getmaxy(), 0);
delplanet(luna, 12,17,2);
getmaxy(),0);
}
}
//------------------------------------------------------------
/* Marcarea orbitelor planetelor din partea stanga */

void detpozitie(unsigned int contor,float deplasare,float rotatie,int
razax,int razay)
{
float u=0, x=0, y=0;
if (contor%8 == 0)
{
u = 2*3.14/360 * (deplasare - 7*rotatie);
putpixel((int) x, (int)y, 7);
}
if (fabs(rotatie) <= 0.095 && contor%42 == 0 && contor>42)
{
}
}
//------------------------------------------------------------
/* marcarea orbitelor planetelor din partea dreapta */

void detpozitie2(unsigned int contor,float deplasare,float rotatie,int
razax,
int razay, int planeta)
{
float u=0, x=0, y=0;
//jup =0.083 sat=0.033 uran=0.011 nep = 0.0059 pluto =0.0039
if (contor>0)
{
if (planeta == 1 && contor%361 == 0)
}
}
//---------------------------------------------------------------
/* Miscarea Planetei Mercur */

void mercur()
{
static float miscmercur = 0;
static unsigned int cmercur = 0;
delplanet(miscmercur,14,20,2);
miscmercur += rotmercur;
drawplanet(miscmercur, 14,20,230,2);
detpozitie(cmercur++,miscmercur,rotmercur,14,20);
}
//------------------------------------------------------------
/* Miscarea Planetei Venus */

void venus()
{
static float miscvenus = 0;
static unsigned int cvenus;
delplanet(miscvenus,36,37,5);
miscvenus -= rotvenus;
drawplanet(miscvenus,36,37,56,5);
detpozitie(cvenus++,miscvenus,-rotvenus,36,37);
}
//--------------------------------------------------------------
/* Miscarea Pamantului si a Lunii */
void pamantsiluna()
{
static float miscpamant = 0, miscluna = 0;
static unsigned int cpamant;
delplanet(miscpamant,61,63,6,0,miscluna);
miscpamant += rotpamant;
miscluna += rotluna;
drawplanet(miscpamant,61,63,1,6,0,miscluna);
// delay(2);
detpozitie(cpamant++,miscpamant,rotpamant,61,63);
}
//--------------------------------------------------------------
/* Miscarea Planetei Marte */

void marte()
{
static float miscmarte = 0;
static unsigned int cmarte = 0;
delplanet(miscmarte,88,104,3);
miscmarte += rotmarte;
drawplanet(miscmarte,88,104,4,3);
// delay(2);
detpozitie(cmarte++,miscmarte,rotmarte,88,104);
}
//------------------------------------------------------------
/* Miscarea Planetei Jupiter */

void jupiter()
{
static float miscjupiter = 0;
static unsigned int cjupiter = 0;
delplanet(miscjupiter,140,155,15);
miscjupiter += rotjupiter;
drawplanet(miscjupiter,140,155,50,15);
// delay(2);
detpozitie(cjupiter++,miscjupiter,rotjupiter,140,155);
}
//-----------------------------------------------------------
/* Miscarea Planetei Jupiter2 */

void jupiter2()
{
static float miscjupiter2 = 0;
static unsigned int cjupiter2 = 0;
delplanet(miscjupiter2,26,28,10);
miscjupiter2 += rotjupiter;
drawplanet(miscjupiter2,26,28,50,10);
detpozitie2(cjupiter2++,miscjupiter2,rotjupiter,26,28,1);
}
//------------------------------------------------------------
/* Miscarea Planetei Saturn */

void saturn()
{
static float miscsaturn = 0;
static unsigned int csaturn = 0;
delplanet(miscsaturn,48,54,8,1);
miscsaturn += rotsaturn;
drawplanet(miscsaturn,48,54,22,8,1);
detpozitie2(csaturn++,miscsaturn,rotsaturn,48,54,2);
}
//-------------------------------------------------------------
/* Miscarea Planetei Uranus */

void uranus()
{
static float miscuranus = 0;
static unsigned int curanus = 0;
delplanet(miscuranus,97,106,4);
miscuranus -= roturanus;
drawplanet(miscuranus,97,106,23,4);
detpozitie2(curanus++,miscuranus,-roturanus,97,106,3);
}
//-------------------------------------------------------------
/* Miscarea Planetei Neptun */

void neptun()
{
static float miscneptun = 0;
static unsigned int cneptun = 0;
delplanet(miscneptun,140,143,3);
miscneptun += rotneptun;
drawplanet(miscneptun,140,143,9,3);
detpozitie2(cneptun++,miscneptun,rotneptun,140,143,4);
}
//------------------------------------------------------------
/* Miscarea Planetei Pluto */

void pluto()
{
static float miscpluto = 0;
static unsigned int cpluto = 0;
float u,x,y;
delplanet(miscpluto,151,220,1);
miscpluto -= rotpluto;
drawplanet(miscpluto,151,220,12,1);
detpozitie2(cpluto++,miscpluto,-rotpluto,151,220,5);
}
//------------------------------------------------------------
void afisareplanete()
{
setcolor(7);
outtextxy(8,15,"Planetele din acest cadru:");
setviewport(5,50,50,50,0);
drawplanet(0,30,0,14,10);
outtextxy(10,20,"Soare"); /* desenarea planetelor */
drawplanet(0,95,0,230,2); /* din cadrul 1 (partea stanga)*/
outtextxy(72,20,"Mercur");
outtextxy(136,20,"Venus");
outtextxy(195,20,"Pamant");
outtextxy(256,20,"Luna");
setcolor(7); /* incadrarea planetelor*/

setlinestyle(1,1,1); /* din cadrul 1 (stanga) */
line(2,-18,getmaxx()/2-12,-18);
line(getmaxx()/2-12,-18,getmaxx()/2-12,90);
line(2,90,70,90);
line(getmaxx()/2-84,90,getmaxx()/2-12,90);
line(2,90,2,-18);
setviewport(5,105,200,200,0); /* desenare jupiter si marte */

outtextxy(10,16,"Marte");
drawplanet(0,272,0,50,10);
outtextxy(245,20,"Jupiter");
setcolor(15);
outtextxy(90,0,"Este anul: ");
outtextxy(90,15,"si ziua: ");
setcolor(15);
setviewport(0,0,getmaxx(),getmaxy(),0);
setlinestyle(0,1,1);
}
//-----------------------------------------------------
/*functie pt crearea liniilor care delimiteaza partea stanga si cea
dreapta*/
/* adica cadrul 1 si 2 */
void incadrare()
{
setcolor(15);
line(0,0,0,getmaxy());/* se traseaza liniile cadrului 1 */
line(0,0,getmaxx()/2,0);
line(getmaxx()/2,0,getmaxx()/2,getmaxy());
line(0,getmaxy(),getmaxx()/2,getmaxy());
line(3,5,3,getmaxy()-5);
line(3,5,getmaxx()/2-3,5);
line(getmaxx()/2-3,5,getmaxx()/2-3,getmaxy()-5);
line(3,getmaxy()-5,getmaxx()/2-3,getmaxy()-5);
line(getmaxx()/2,0,getmaxx(),0); /* trasare linii cadru 2 */
line(getmaxx(),0,getmaxx(),getmaxy());
line(getmaxx(),getmaxy(),getmaxx()/2,getmaxy());
line(getmaxx()/2+3,5,getmaxx()-3,5);
line(getmaxx()-3,5,getmaxx()-3,getmaxy()-5);
line(getmaxx()-3,getmaxy()-5,getmaxx()/2+3,getmaxy()-5);
line(getmaxx()/2+3,5,getmaxx()/2+3,getmaxy()-5);
setviewport(350,25,360,40,0);
drawplanet(0,0,0,22,8,1); /* desenare Saturn */
setcolor(22);
outtextxy(-20,20,"Saturn");
drawplanet(0,0,0,22,8,1);
line(-25,-12,35,-12);
line(-25,-12,-25,32);
line(-25,32,35,32);
line(35,32,35,-12);
drawplanet(0,248,0,23,4); /* desenare Uranus */

outtextxy(228,20,"Uranus");
line(220,-12,280,-12);
line(280,-12,280,32);
line(280,32,220,32);
line(220,32,220,-12);
}
//---------------------------------------------------------------------
-----
/* functie pentru desenarea planetelor Neptun si Pluto si incadrarea
lor */
void neptunsipluto()
{
setviewport(350,435,360,470,0);
outtextxy(-20,20,"Neptun");
line(-25,-12,35,-12);
line(-25,-12,-25,32);
line(-25,32,35,32);
line(35,32,35,-12);
outtextxy(228,20,"Pluto");
line(220,-12,280,-12);
line(280,-12,280,32);
line(280,32,220,32);
line(220,32,220,-12);
}
//----------------------------------------------------------
void main()
{
int driver = DETECT, mod, error;
unsigned int i=1;
int anul,ziua;
char an[10],zi[8];
initgraph(&driver, &mod, "");

error = graphresult();
if (error != grOk)
{
printf("Eroare: %s\n", grapherrormsg(error));
printf("Press any key... ");
getch();
exit(1);
}
afisareplanete();
incadrare();
neptunsipluto();
setviewport( getmaxx()/4+1, getmaxy()/2+64,getmaxx()/2, getmaxy(),0);

soare(10);
setviewport( getmaxx()*3/4, getmaxy()/2,getmaxx(), getmaxy(),0);
soare(3);
while (!kbhit() && i<65535)

{
getmaxy(),0);
mercur();
venus();
pamantsiluna();
marte();
jupiter();
setviewport( getmaxx()*3/4, getmaxy()/2,getmaxx(), getmaxy(),0);
jupiter2();
saturn();
uranus();
neptun();
pluto();
setcolor(15); /* afisarea anului */

setviewport(185,105,210,135,1); /* si a zilei curente */
clearviewport();
setviewport(185,105,210,135,1);
outtextxy(0,0,itoa(i/365,an,10));
outtextxy(0,15,itoa(i%366,zi,10));
i++;
}
getch();
closegraph();
}
Varianta in Java Script
sist-solar.html
<html>
<head>

<title>Sistemul solar -- Neata Paul &ltneatapaul@yahoo.com&gt

2006</title>
<script type="text/javascript">
timeout = 1; // la ce interval de timp (milisecunde) se face
miscarea
notstarted = true; // se foloseste k sa nu lansam mai multe
setTimeout-uri
interval = 0; // aici se pastreza ce intarce setInterval
contor = 0; // contorul care prin impartire la 365 da ziua si
anul
// (name, id, src, cur_depl, inc_depl, x_orb, y_orb, center,

orb_factor, factor)
// sorii - la sori pe post de x_orb si y_orb scriem coordonatele
lor
soare1 = new Planet("Soare", "centru1", "img/soare.gif", 0, 0,
220, 280, null, 0, 0);
soare2 = new Planet("Areso", "centru2", "img/soare.gif", 0, 0,
770, 280, null, 0, 0);
// planetele din centrul 1
mercur = new Planet("Mercur", "mercur", "img/mercur.gif", 0,
360.0/88.0, 14, 20, soare1, 8, 2.79);
venus = new Planet("Venus", "venus", "img/venus.gif", 0, -
360.0/225.0, 36, 37, soare1, 13, 2.63);
pamant = new Planet("Pamant", "pamant", "img/pamant.gif", 0,
360.0/365.0, 61, 63, soare1, 17, 2.84);
luna = new Planet("Luna", "luna", "img/luna.gif", 0, 360.0/28.0,
12, 17, pamant, 0, 2.76);
marte = new Planet("Marte", "marte", "img/marte.gif", 0,
360.0/686.98, 88, 104, soare1, 26, 3.0);
jupiter = new Planet("Jupiter", "jupiter", "img/jupiter.gif", 0,
360.0/4307.0, 140, 155, soare1, 85, 2.3);
// planetele din centrul 2
terjupi = new Planet("Terjupi", "terjupi", "img/jupiter.gif", 0,
360.0/4307.0, 26, 28, soare2, 600, 1.6);
saturn = new Planet("Saturn", "saturn", "img/saturn.gif", 0,
360.0/10731.0, 48, 54, soare2, 700, 1.9);
uranus = new Planet("Uranus", "uranus", "img/uranus.gif", 0, -
360.0/30660.0, 97, 106, soare2, 1100, 1.5);
neptun = new Planet("Neptun", "neptun", "img/neptun.gif", 0,
360.0/66115.5, 140, 143, soare2, 1300, 1.40);
pluto = new Planet("Pluto", "pluto", "img/pluto.gif", 0, -
360.0/90465.5, 151, 220, soare2, 1500, 1.50);
// functia care contruieste obiectul de tip planeta

// factorii se folosesc sa departeze (supraunitar) sau sa
apropie(subunitar) planetele de centru
function Planet(name, id, src, cur_depl, inc_depl, x_orb, y_orb,
center, orb_factor, factor)
{
this.name = name;
this.id = id;
this.src = src:
this.cur_depl = cur_depl;
this.inc_depl = inc_depl;
this.x_orb = x_orb;
this.y_orb = y_orb;
this.center = center;
this.orb_factor = orb_factor;
this.factor = factor;
this.re_pos = re_pos; /* M E T O D A */
this.draw_orbit = draw_orbit; /* M E T O D A */ // ORBIT se
scrie/zice in engleza la orbita ?
return this;
}
// functia asta se apeleaza automat la incarcare si 'scrie' pe ecran

textul si pozele
function on_load()
{
document.bgColor = '#000000';
document.fgColor = '#00ff00';
notsarted = true;
alert("SISTEMUL SOLAR - Neata Paul, grupa 433, anul IV, 2006\n\
Pentru alte informatii uitati-va in sursa.\n\n\
Pentru a porni/suspenda miscarea planetelor dati un clic pe suprafata
HTML-ului.\n\
In titlul ferestrei sunt informatiile despre ani si zile.\n\n\
Dimesiunile orbitelor au fost alterate, ficare, cu un factor.\n\
Daca vreti o afisare \"normala\"(nerecomandat), modificati, in sursa,
factorul la 1 pentru fiecare planeta.\n\n\
Avand in vedere faptul ca JavaScript este interpretat diferit de la
browser la browser, s-ar putea sa apara\
mici probleme la afisare.");
//screen.availHeight/2+50;
// punem sorii si apoi ii pozitionam
insert_planet(soare1);
insert_planet(soare2);
place_img_at(soare1.id, soare1.x_orb, soare1.y_orb);
place_img_at(soare2.id, soare2.x_orb, soare2.y_orb);
//trasam orbitele
if(confirm("Vreti sa afisati orbitele planetelor ? \nDaca da
aveti grija ca asta dureaza ceva de tipul 10 sec pe un Pentium 4\n")) {
mercur.draw_orbit();
venus.draw_orbit();
pamant.draw_orbit();
marte.draw_orbit();
jupiter.draw_orbit();
terjupi.draw_orbit();
saturn.draw_orbit();
uranus.draw_orbit();
neptun.draw_orbit();
pluto.draw_orbit();
}
// planatele le punem aiurea si invocam o iteratie care le va

aseza unde trebuie
insert_planet(mercur);
insert_planet(venus);
insert_planet(pamant);
insert_planet(luna);
insert_planet(marte);
insert_planet(jupiter);
insert_planet(terjupi); /////////////////
insert_planet(saturn);
insert_planet(uranus);
insert_planet(neptun);
insert_planet(pluto);
main_iteration(); // k sa le puna unde trebuie

}
// insereaza o imagine in document

function insert_planet(planet)
{
document.body.innerHTML += ""
+ "<IMG id='"+planet.id+"' src='"+planet.src+"' "
+ "style='position:absolute;'>"
+ "<br />";
}
// se apeleaza cand dam click pe document

// daca sistemul solar merge atunci ii pune pauza iar daca nu il face
sa mearga
function on_click()
{
if(notstarted) {
notstarted = false;
interval = setInterval("main_iteration()", timeout);
main_iteration()
} else {
notstarted = true;
clearInterval(interval);
}
}
// functia asta se apeleaza "din timp in timp" si muta toate planetele
(care trebuie mutate)
function main_iteration()
{
contor++;
an = contor/365;
zi = contor%366;
// IExplorer
//window.status = "anul "+parseInt(""+an)+" ziua
"+parseInt(""+zi);
// Mozilla
document.title = "anul "+parseInt(""+an)+" ziua
"+parseInt(""+zi);
mercur.re_pos();
venus.re_pos();
pamant.re_pos();
luna.re_pos();
marte.re_pos();
jupiter.re_pos();
terjupi.re_pos();
saturn.re_pos();
uranus.re_pos();
neptun.re_pos();
pluto.re_pos();
}
// functia de pozitionare a unei planate
// c_x, c_y reprezinta coordonatele centrului in jurul caruia se face
rotatia
function re_pos()
{
img = document.getElementById(this.center.id);
c_x = parseInt(img.style.left) + parseInt(img.width) / 2;
c_y = parseInt(img.style.top) + parseInt(img.height) / 2;
u = 2*Math.PI/360 * this.cur_depl; // unghiul in functie de
deplasare
x = c_x + this.factor * this.x_orb * Math.cos(u); // coordonatele
y = c_y + this.factor * this.y_orb * Math.sin(u); // ...
place_img_at(this.id, x, y);
this.cur_depl += this.inc_depl;
}
// plaseaza centrul unei imagini la coordonatele date
function place_img_at(id, x, y)
{
img = document.getElementById(id);
img.style.left = x - parseInt(img.width) / 2;
img.style.top = y - parseInt(img.height) / 2;
}
// deseneaza orbita
function draw_orbit()
{
img = document.getElementById(this.center.id);
c_x = parseInt(img.style.left) + parseInt(img.width) / 2;
c_y = parseInt(img.style.top) + parseInt(img.height) / 2;
u = 0;
x = 0;
y = 0;
for(this.cur_depl = 0; Math.abs(this.cur_depl) <= 360;
this.cur_depl += this.orb_factor*this.inc_depl) {
u = 2*Math.PI/360 * this.cur_depl; // unghiul in functie de
deplasare
x = c_x + this.factor * this.x_orb * Math.cos(u); //
coordonatele
y = c_y + this.factor * this.y_orb * Math.sin(u); // ...
x -= 5;
y -= 12;
ch = '.';
document.body.innerHTML += "<div
style='valign:top;align:left;color:#eeeeee;position:absolute;left:"+x+"
;top:"+y+"'>"+ch+"</div>"
}
this.cur_depl = 0;
}
</script>
<noscript>
Interpretarea JavaScript nu este activata in browser.
<br /><br />
Vedeti Edit->Preferences (pe Mozilla) sau Tools->Internet Options (pe
Internet Explorer) !
<br /><br />
</noscript>
</head>
<body background="img/back.bmp" onload="on_load();"
onclick="on_click();">

</body>
</html>
PROIECT – ceas
Nota: Codul in Pascal/Delphi; sa se scrie si codul in C++
uses dos,crt,graph;
var
i,Gd,Gm,x,y,r: integer;
angle4,angle,angle1,angle2,angle3: integer;
rad4,rad3,rad,rad1,rad2: real;
temp,h,m,s,hunc: word;
d : string;
begin
gd :=DETECT;
initgraph(Gd,Gm,'c:\TP\BGI');
setbkcolor(15); {culoarea de fond este alba}
x:=300; y:=250; { x SI y pentru centrul cercului }
r:=150; { raza cercului }
SetColor(9); {culoarea pentru cercuri este }
SETLINESTYLE(solidln,0,3);{liniile}
circle(x,y,r); { deseneaza cercul }
circle(x,y,r+20); { deseneaza un cerc cu raza mai mare cu 20 decat
primul}
setcolor(4);{deseneaza cercuri rosii}
for i:=1 to 148 do circle(x,y,i);
setcolor(14); {deseneaza cercuri galbene}
for i:=3 to 17 do circle(x,y,r+i);
setcolor(4); {culoarea rosie pentru scris }
for i:=1 to 12 do
begin
angle3:=i*30-90; { DESENEAZA NUMERELE }
rad3:=angle3*pi/180;
if i<10 then
begin
moveto(round(cos(rad3)*(r+35)+x),round(sin(rad3)*(r+35)+y));
Str(i, d);
outtext(d)
end
else
begin
moveto(round(cos(rad3)*(r+44)+x),round(sin(rad3)*(r+44)+y));
Str(I, d);
outtext(d);
end;
end;
setcolor(2);{setez culoare verde pentru linii}
for i:=1 to 60 do { deseneaza liniile pentru ceas }
begin
if (i mod 5 = 0) then
begin
angle4:=i*6-90;
rad4:=angle4*pi/180; {linii mari}
line( round(cos(rad4)*r+x),
round(sin(rad4)*r+y),
round(cos(rad4)*(r+20)+x),
round(sin(rad4)*(r+20)+y));
end
else
begin {lini mici}
angle4:=i*6-90;
rad4:=angle4*pi/180;
line( round(cos(rad4)*r+x),
round(sin(rad4)*r+y),
round(cos(rad4)*(r+10)+x),
round(sin(rad4)*(r+10)+y));
end;
end;
repeat
gettime(h,m,s,hund); { obtin ora curenta de la PC}
if temp<>s then
begin
setcolor(4);{culoarea rosie}
line(x, y, round(cos(rad)*(r-10)+x),
round(sin(rad)*(r-10)+y)); { DESENEAZA SECUNDELE }
line(x, y, round(cos(rad1)*(r-30)+x),
round(sin(rad1)*(r-30)+y)); { DESENEAZA ORELE }
round(sin(rad2)*(r-15)+y)); { DESENEAZA MINUTELE }
angle:=6*s-90; { UNGHIUL PENTRU SECUNDE }

angle1:=30*h+(m div 15)-90; { UNGHIUL PENTRU ORE }
angle2:=m*6-90; { UNGHIUL PENTRU MINUTE }
Rac:=angle*pi/180; { UNGHIUL RAZEI PENTRU SECUNDE}
Rad1:=angle1*pi/180 ; { UNGHIUL RAZEI PENTRU ORE}
Rad2:=angle2*pi/180; { UNGHIUL RAZEI PENTRU MINUTE}
setcolor(14); {culoarea galbena}

line(x, y, round(cos(rad)*(r-10)+x),
round(sin(rad)*(r-10)+y)); { DESENEAZA SECUNDELE}
round(sin(rad1)*(r-30)+y)); { DESENEAZA ORELE }
round(sin(rad2)*(r-15)+y)); { DESENAZA MINUTELE }
temp:=s;
end;
until keypressed; { DESENEAZA CEASUL PANA SE APASA O TASTA }
readln;
closegraph;
end.
PROIECT – fractali – multimi G. JULIA

Referinta:
M. Vlada, A,.Posea,…, Grafica pe calculator in limbajele Pascal si C, vol. II, , Implementare si
aplicatii, Ed. Tehnica,1992 pag. 3-94
program fractal_julia;
uses graph;
Type complex = object
x, y : real;
procedure InitializatCu( x1, y1 : real);
procedure InmultitCu( z : complex);
procedure AdunatCu( z : complex);
function raza : real;
end;
Const XMin = -2; {fereastra virtuala de afisare}
YMin = -0.81;
XMax = 2;
YMax = 0.81;
MaxRaza = 25;
MaxCulori = 30; {Numarul maxim de culori limiteaza si nr de
iteratii}
kz : complex = ( x:-1.3; y:0.1);
var Gd, Gm : integer;
{procedure initiaza}
procedure complex.InitializatCu( x1, y1 : real);
begin x := x1; y := y1; end;
{procedura inmulteste}
procedure complex.InmultitCu( z : complex );
var temp : complex;
begin
temp.InitializatCu( x*z.x-y*z.y, x*z.y+z.x*y );
x := temp.x; y := temp.y;
end;
{procedura aduna}
procedure complex.AdunatCu( z : complex );
begin x := x+z.x; y := y+z.y; end;
{functia raza}
function complex.raza : real;
begin raza := x*x + y*y; end;
{procedura julia}
procedure FractalJulia;
function culoare ( x, y : real) : byte;
var c : word;
z : complex;
begin
c := 1;
z.InitializatCu( x, y );
repeat
z.InmultitCu( z ); z.AdunatCu( kz );
c := c+1;
until (z.raza > MaxRaza) or (c = MaxCulori);
culoare := c:
end;
var x, y : integer;
ScalaX, Scalay : real;
begin
ScalaX := (XMax-XMin)/getmaxx;
ScalaY := (YMax-YMin)/getmaxy;
for x := 1 to getmaxx do
for y := 1 to getmaxy do
putPixel( x, y, culoare( XMin+x*ScalaX,YMin+y*ScalaY));
end;
begin
InitGraph( Gd, Gm, '' );
FractalJulia;
readln;
closeGraph;
end.
PROIECT – fractali – multimi B. MANDELBROT

Referinta
M. Vlada, A,.Posea,…, Grafica pe calculator in limbajele Pascal si C, vol. II, , Implementare si
aplicatii, Ed. Tehnica,1992 pag. 3-94
program fractal_mandelbrot;
uses graph;
Type complex = object
x, y : real;
procedure InitializatCu( x1, y1 : real);
procedure InmultitCu( z : complex);
procedure AdunatCu( z : complex);
function raza : real;
end;
Const XMin = -2.7; {fereastra virtuala de afisare}
YMin = -1.5;
XMax = 1;
YMax = 1.5;
MaxRaza = 20;
MaxCulori = 32; {Numarul maxim de culori limiteaza si nr de
iteratii}
kz : complex = ( x:-1.3; y:0.1);
var Gd, Gm : integer;
procedure complex.InitializatCu( x1, y1 : real);
begin x := x1; y := y1; end;
procedure complex.InmultitCu( z : complex );
var temp : complex;
begin
temp.InitializatCu( x*z.x-y*z.y, x*z.y+z.x*y );
x := temp.x; y := temp.y;
end;
procedure complex.AdunatCu( z : complex );
begin x := x+z.x; y := y+z.y; end;
function complex.raza : real;
begin raza := x*x + y*y; end;
procedure FractalJulia;
function culoare ( x, y : real) : byte;
var c : word;
z : complex;
begin
c := 1;
z.InitializatCu( 0, 0 );
kz.InitializatCu( x, y );
repeat
z.InmultitCu( z ); z.AdunatCu( kz );
c := c+1;
until (z.raza > MaxRaza) or (c = MaxCulori);
culoare := c:
end;
var x, y : integer;
ScalaX, Scalay : real;
begin
ScalaX := (XMax-(XMin))/getmaxx;
ScalaY := (YMax-(YMin))/getmaxy;
for x := 1 to getmaxx do
for y := 1 to getmaxy do
putPixel( x, y, culoare( XMin+x*ScalaX,YMin+y*ScalaY));
end;
begin
InitGraph( Gd, Gm, '' );
FractalJulia;
readln;
closeGraph;
end.
PROIECT – cub si rotatii

Nota: Codul in C++
//0******************************************************************
#include <graphics.h>
#include <stdlib.h>
#include <stdio.h>
#include <conio.h>
#include <dos.h>
#include <string.h>
#include <math.h>
//1******************************************************************
void initg(){
int gdriver = DETECT, gmode, errorcode;
initgraph(&gdriver, &gmode, "");
if (errorcode != grOk) /* an error occurred */
{printf("Graphics error: %s\n", grapherrormsg(errorcode));
printf("Press any key to halt:");
getch();
exit(1);/* return with error code */
}
}
//2*******************************************************************
void endg(){
closegraph();
}
//3*******************************************************************
int round(double number)
{
double a;
int b;
b=number;
a=(double)number-b;
if (a>=0.5) return b+1;
else return b;
}
//3*******************************************************************
int trans(int n)//schimba din lui oy de la (sus in jos) la (jos in sus)
{
int r,i;
i=getmaxy();
r=i-n;
return r;
}
//3*****************************************************************
double rad(double n)//transforma grade in radian
{
return (double)M_PI*n/180;
}
//3*****************************************************************
void d3d2(double a,double b,double c,double x1,double y1,double z1,
double &x,double &y)
{
x=x1*cos(rad(a))+y1*cos(rad(b))+z1*cos(rad(c));
y=y1*sin(rad(a))+y1*sin(rad(b))+z1*sin(rad(c));
}
//3*****************************************************************
void defpoint(double *x,double *y,double *z)
{
x[0]=0; y[0]=0; z[0]=0;//originea
x[1]=100; y[1]=0; z[1]=0;//axa ox
x[2]=0; y[2]=100; z[2]=0;//axa oy
x[3]=0; y[3]=0; z[3]=100;//axa oy
//coord cubului
/*
x[4]=0; y[4]=0; z[4]=0; //1
x[5]=50; y[5]=0; z[5]=0; //2
x[6]=50; y[6]=0; z[6]=50; //3
x[7]=0; y[7]=0; z[7]=50; //4
x[8]=0; y[8]=50; z[8]=50; //5
x[9]=0; y[9]=50; z[9]=0; //6
x[10]=50; y[10]=50; z[10]=0; //7
x[11]=50; y[11]=50; z[11]=50; //8
*/
x[4]=0; y[4]=0; z[4]=0; //1

x[5]=50; y[5]=0; z[5]=0; //2
x[6]=50; y[6]=0; z[6]=70; //3
x[7]=0; y[7]=0; z[7]=70; //4
x[8]=0; y[8]=30; z[8]=70; //5
x[9]=0; y[9]=80; z[9]=0; //6
x[10]=50; y[10]=80; z[10]=0; //7
x[11]=50; y[11]=30; z[11]=70; //8
}
//3*****************************************************************
void desen(double *x,double *y,double *z)
{
double ox=getmaxx()/2,oy=getmaxy()/2,a,b,c,d;
/*
setcolor(15);
d3d2(0,90,225,x[0],y[0],z[0],a,b);
d3d2(0,90,225,x[1],y[1],z[1],c,d);
line(ox+round(a),trans(oy+round(b)),ox+round(c),trans(oy+round(d)));
d3d2(0,90,225,x[2],y[2],z[2],c,d);
d3d2(0,90,225,x[3],y[3],z[3],c,d);
*/
setcolor(4);
d3d2(0,90,225,x[4],y[4],z[4],a,b);
d3d2(0,90,225,x[5],y[5],z[5],c,d);
d3d2(0,90,225,x[7],y[7],z[7],c,d);
d3d2(0,90,225,x[9],y[9],z[9],c,d);
d3d2(0,90,225,x[10],y[10],z[10],a,b);
d3d2(0,90,225,x[5],y[5],z[5],c,d);
d3d2(0,90,225,x[11],y[11],z[11],c,d);
d3d2(0,90,225,x[9],y[9],z[9],c,d);
d3d2(0,90,225,x[6],y[6],z[6],a,b);
d3d2(0,90,225,x[5],y[5],z[5],c,d);
d3d2(0,90,225,x[11],y[11],z[11],c,d);
d3d2(0,90,225,x[7],y[7],z[7],c,d);
d3d2(0,90,225,x[8],y[8],z[8],a,b);
d3d2(0,90,225,x[7],y[7],z[7],c,d);
d3d2(0,90,225,x[11],y[11],z[11],c,d);
d3d2(0,90,225,x[9],y[9],z[9],c,d);
}
//3****************************************************************
void rot_oz(double &x,double &y,double &z,double grad)
{
double x1=x,y1=y,z1=z;
x=x1*cos(rad(grad))-y1*sin(rad(grad));
y=x1*sin(rad(grad))+y1*cos(rad(grad));
z=z1;
}
//3****************************************************************
void rot_ox(double &x,double &y,double &z,double grad)
{
x=x1;
y=y1*cos(rad(grad))-z1*sin(rad(grad));
z=y1*sin(rad(grad))+z1*cos(rad(grad));
}
//3****************************************************************
void rot_oy(double &x,double &y,double &z,double grad)
{
x=x1*cos(rad(grad))+z1*sin(rad(grad));
y=y1;
z=-x1*sin(rad(grad))+z1*cos(rad(grad));
}
//3****************************************************************
void rotplan(double xc,double yc,double zc,double &x,double &y,double
z,double unghi)
//cx,yc==punctul fata de care puctul x,y se roteste cu unghiul unghi
{
double x1=x,y1=y,z1=z;;
x=xc+(x1-xc)*cos(rad(unghi))-(y1-yc)*sin(rad(unghi));
y=yc+(x1-xc)*sin(rad(unghi))+(y1-yc)*cos(rad(unghi));
z=z1;
}
//3*****************************************************************
void main(void){
initg();
double xx[20],yy[20],zz[20],grad=270;
int i;
defpoint(xx,yy,zz);
setwritemode(1);
desen(xx,yy,zz);
//*
//***********************************
getch();
for(i=0;i<360;i++)
{
delay(1);
desen(xx,yy,zz);
rot_ox(xx[4],yy[4],zz[4],1);
rot_ox(xx[5],yy[5],zz[5],1);
rot_ox(xx[6],yy[6],zz[6],1);
rot_ox(xx[7],yy[7],zz[7],1);
rot_ox(xx[8],yy[8],zz[8],1);
rot_ox(xx[9],yy[9],zz[9],1);
rot_ox(xx[10],yy[10],zz[10],1);
rot_ox(xx[11],yy[11],zz[11],1);
desen(xx,yy,zz);
}
//***********************************
getch();
for(i=0;i<360;i++)
{
delay(1);
desen(xx,yy,zz);
rot_oy(xx[4],yy[4],zz[4],1);
rot_oy(xx[5],yy[5],zz[5],1);
rot_oy(xx[6],yy[6],zz[6],1);
rot_oy(xx[7],yy[7],zz[7],1);
rot_oy(xx[8],yy[8],zz[8],1);
rot_oy(xx[9],yy[9],zz[9],1);
rot_oy(xx[10],yy[10],zz[10],1);
rot_oy(xx[11],yy[11],zz[11],1);
desen(xx,yy,zz);
}
//***********************************
getch();
for(i=0;i<360;i++)
{
delay(1);
desen(xx,yy,zz);
rot_oz(xx[4],yy[4],zz[4],1);
rot_oz(xx[5],yy[5],zz[5],1);
rot_oz(xx[6],yy[6],zz[6],1);
rot_oz(xx[7],yy[7],zz[7],1);
rot_oz(xx[8],yy[8],zz[8],1);
rot_oz(xx[9],yy[9],zz[9],1);
rot_oz(xx[10],yy[10],zz[10],1);
rot_oz(xx[11],yy[11],zz[11],1);
desen(xx,yy,zz);
}
//***********************************
getch();
for(i=0;i<360;i++)
{
delay(10);
desen(xx,yy,zz);
rotplan(25,25,25,xx[4],yy[4],zz[4],1);
rotplan(25,25,25,xx[5],yy[5],zz[5],1);
rotplan(25,25,25,xx[6],yy[6],zz[6],1);
rotplan(25,25,25,xx[7],yy[7],zz[7],1);
rotplan(25,25,25,xx[8],yy[8],zz[8],1);
rotplan(25,25,25,xx[9],yy[9],zz[9],1);
rotplan(25,25,25,xx[10],yy[10],zz[10],1);
rotplan(25,25,25,xx[11],yy[11],zz[11],1);
desen(xx,yy,zz);
}
//***********************************
//*/
getch();
endg();
}
//9*****************************************************************
PROIECT – desen/aria unui poligon oarecare

Nota: Codul in Java
Arie.java
import java.awt.*;
import javax.swing.*;
import java.awt.event.*;
public class Arie extends JFrame{
private JButton buton = null;

private Surface suprafata = null;
private final Arie this2 = this;
private MenuBar meniuBara;
private Menu optiuni = null;
private MenuItem itm1, itm2;
public Arie(){
super("Aria poligonului");
initialize();
addWindowListener(new WindowAdapter()
{
public void windowClosing(WindowEvent e)
{
System.exit(0);
}
});
}
private JButton getJButton(){

if (buton == null){
buton = new JButton("OK");
buton.setEnabled(false);
buton.addActionListener(new ActionListener()
{
public void actionPerformed(ActionEvent e)
{
if (buton.getText() == "OK"){
getCanvas().setGata(true);
buton.setText("Calculeaza aria");
}
else{
JOptionPane.showMessageDialog(
this2,
"Aria poligonului este
"+getCanvas().getAria()+" pixeli",
"Informatie",
JOptionPane.INFORMATION_MESSAGE);
}
}
});
}
return buton;
}
private MenuBar getJMeniuBara()

{
if (meniuBara == null)
{
meniuBara = new MenuBar();
optiuni = new Menu("Optiuni");
itm1 = new MenuItem("Din nou...");
itm1.addActionListener(new ActionListener(){
{
getContentPane().remove(suprafata);
suprafata = null;
initialize();
buton.setText("OK");
buton.setEnabled(false);
}
});
itm2 = new MenuItem("Exit");

{
hide();
dispose();
System.exit(0);
}
});
optiuni.add(itm1);
optiuni.add(itm2);
meniuBara.add(optiuni);
}
return meniuBara;
}
private Surface getCanvas(){

if (suprafata == null){
suprafata = new Surface();
}
return suprafata;
}
private void initialize(){

setSize(300,300);
setLocation(200,100);
this.setMenuBar(getJMeniuBara());
this.getContentPane().setLayout(new java.awt.BorderLayout());
this.getContentPane().add(getCanvas(),
java.awt.BorderLayout.CENTER);
this.getContentPane().add(getJButton(),
java.awt.BorderLayout.SOUTH);
setVisible(true);
new Thread(){
public void run(){
while(getCanvas().getNumarPuncte()<3);
buton.setEnabled(true);
}
}.start();
}
public static void main(String[] args){

new Arie();
}
}
Surface.java
import java.awt.*;
import javax.swing.JPanel;
public class Surface extends Canvas{
private int[] x = new int[30];

private int[] y = new int[30];
private int i=0;
private boolean gata = false;
public Surface(){
this.setBackground(Color.red);
this.addMouseListener(new MouseAdapter()
{
public void mousePressed(MouseEvent e){
if (!gata){
x[i] = e.getX();
y[i] = e.getY();
i++;
}
repaint();
}
});
}
public void paint(Graphics g){

for (int j = 0; j < i; j++)
g.fillOval(x[j],y[j],5,5);
if (gata)
g.fillPolygon(x,y,i);
}
public void setGata(boolean val){

gata = val;
repaint();
}
public int getNumarPuncte(){

return i;
}
public double getAria(){

//Joseph O'Rourke
int suma = 0;
x[i] = x[0];
y[i] = y[0];
for(int j = 0; j < i; j++)
suma = suma + x[j]*y[j+1]-x[j+1]*y[j];
suma = suma/2;
return suma;
}
}
PROIECT – desen ROZA – petale

Nota: Codul in Java
Roza.java
import java.awt.*;
import javax.swing.*;
public class Roza extends JFrame{
private Surface suprafata = null;

private MenuBar meniuBara;
private Menu optiuni = null;
private MenuItem itm1, itm2;
private String x,y;
public Roza(){
super("Roza");
Dimension marimeEcran =
Toolkit.getDefaultToolkit().getScreenSize();
setSize(marimeEcran.width * 3/4, (int)(marimeEcran.height *
0.80));
setLocation(
marimeEcran.width / 2 - this.getWidth() / 2,
marimeEcran.height / 2 - this.getHeight() / 2-
(int)(marimeEcran.height*0.01));
initialize();
{
public void windowClosing(WindowEvent e)
{
System.exit(0);
}
});
}
private MenuBar getJMeniuBara()

{
if (meniuBara == null)
{
meniuBara = new MenuBar();
optiuni = new Menu("Optiuni");
itm1 = new MenuItem("Din nou...");
{
getContentPane().remove(suprafata);
suprafata = null;
initialize();
}
});
itm2 = new MenuItem("Exit");

{
hide();
dispose();
System.exit(0);
}
});
optiuni.add(itm1);
optiuni.add(itm2);
meniuBara.add(optiuni);
}
return meniuBara;
}
private Surface getCanvas(){

if (suprafata == null){
suprafata = new Surface();
}
return suprafata;
}
private void initialize(){
this.setMenuBar(getJMeniuBara());
this.getContentPane().setLayout(new java.awt.BorderLayout());
this.getContentPane().add(getCanvas(),
java.awt.BorderLayout.CENTER);
setVisible(true);
while(!pasValid(getPas()));
int pas = Integer.parseInt(x);
while(!petaleValid(getPetale()));
int petale = Integer.parseInt(y);
suprafata.setPas(pas);
suprafata.setPetale(petale);
}
private String getPas(){

x = null;
while (x == null)
x = JOptionPane.showInputDialog(
this,
"Introdu pasul!",
"Intrebare",
JOptionPane.QUESTION_MESSAGE);
return x;
}
private String getPetale(){

y = null;
while (y == null)
y = JOptionPane.showInputDialog(
this,
"Introdu nr petale!",
"Intrebare",
JOptionPane.QUESTION_MESSAGE);
return y;
}
private boolean pasValid(String x){

try{
Integer.parseInt(x);
return true;
}
catch(NumberFormatException e){
this,
"Numar invalid",
"Atentie",
JOptionPane.ERROR_MESSAGE);
return false;
}
}
private boolean petaleValid(String x){

try{
Integer.parseInt(x);
return true;
}
catch(NumberFormatException e){
this,
"Numar invalid",
"Atentie",
JOptionPane.ERROR_MESSAGE);
return false;
}
}
public static void main(String[] args){

new Roza();
}
}
Surface.java
import java.awt.*;
public class Surface extends Canvas{
private int pas = 0;

private int petale = 0;
private int cul = 0;
private int pasF, petaleF;
private boolean pasSetat = false;
private boolean petaleSetat = false;
private Color[] culoare = {Color.black, Color.blue, Color.cyan,
Color.darkGray,
Color.gray, Color.green,
Color.lightGray, Color.magenta,
Color.orange, Color.pink,
Color.red, Color.white, Color.yellow};
public Surface(){
this.setBackground(Color.black);
}
public void paint(Graphics g){

if(pasSetat && petaleSetat){
int j = 0;
double cont = 0;
if (pas <= 0)
pas = 180;
if (petale <= 0)
petale = 3;
petale++;
g.setColor(culoare[cul]);
while(cont <= 2*Math.PI ){
j++;
if (petale*j > 2*pas){
cul++;
if (cul > 12)
cul = 0;
j = 0;
g.setColor(culoare[cul]);
}
g.drawLine((int)(Math.sin(cont)*200)+330,(int)(Math.cos(cont)*200)+240,
(int)(Math.sin(petale*cont)*200)+330,(int)(Math.cos(petale*cont)*200)+2
40);
cont = cont + Math.PI / pas;
}
}
init();
}
public void setPas(int pas){

this.pas = pas;
pasSetat = true;
pasF = pas;
repaint();
}
public void setPetale(int petale){

this.petale = petale;
petaleSetat = true;
petaleF = petale;
repaint();
}
private void init(){

pas = pasF;
petale = petaleF;
cul = 0;
}
}
ALGORITMUL LUI BRESENHAM PENTRU SEGMENT SI CERC
Cod VB
VERSION 5.00
Begin VB.Form Form1
AutoRedraw = -1 'True
BackColor = &H000080FF&
Caption = "Form1"
ClientHeight = 4725
ClientLeft = 165
ClientTop = 855
ClientWidth = 7335
DrawWidth = 3
LinkTopic = "Form1"
ScaleHeight = 315
ScaleMode = 3 'Pixel
ScaleWidth = 489
StartUpPosition = 3 'Windows Default
Begin VB.TextBox txt4
Height = 375
Left = 2160
TabIndex = 4
Top = 3360
Width = 1095
End
Height = 375
Left = 2160
TabIndex = 3
Top = 2760
Width = 1095
End
Height = 375
Left = 2160
TabIndex = 2
Top = 2160
Width = 1095
End
Height = 375
Left = 2160
TabIndex = 1
Top = 1560
Width = 1095
End
Begin VB.CommandButton Command1
Caption = "DESENEAZA"
Height = 375
Left = 5640
TabIndex = 0
Top = 4080
Width = 1335
End
Begin VB.Label Lbl5
Alignment = 2 'Center
Caption = "ALGORITMUL LUI BRESENHAM PENTRU DREAPTA SI
CERC"
BeginProperty Font
Name = "MS Sans Serif"
Size = 12
Charset = 0
Weight = 700
Underline = 0 'False
Italic = 0 'False
Strikethrough = 0 'False
EndProperty
Height = 735
Left = 1200
TabIndex = 9
Top = 120
Width = 5295
End
Begin VB.Label Lbl4
Caption = "Dati y1 :"
BeginProperty Font
Name = "Times New Roman"
Size = 12
Charset = 0
Weight = 700
Italic = 0 'False
EndProperty
Height = 375
Left = 840
TabIndex = 8
Top = 3360
Width = 855
End
Begin VB.Label Lbl3
Caption = "Dati y0 :"
BeginProperty Font
Size = 12
Charset = 0
Weight = 700
Italic = 0 'False
EndProperty
Height = 375
Left = 840
TabIndex = 7
Top = 2760
Width = 1215
End
Begin VB.Label Lbl2
Caption = "Dati x1 :"
BeginProperty Font
Size = 12
Charset = 0
Weight = 700
Italic = 0 'False
EndProperty
Height = 375
Left = 840
TabIndex = 6
Top = 2160
Width = 855
End
Begin VB.Label Lbl1
Caption = "Dati x0 :"
BeginProperty Font
Size = 12
Charset = 0
Weight = 700
Italic = 0 'False
EndProperty
Height = 375
Left = 840
TabIndex = 5
Top = 1560
Width = 855
End
Begin VB.Menu mnuDreapta
Caption = "&Dreapta"
End
Begin VB.Menu mnuCerc
Caption = "&Cerc"
End
Begin VB.Menu mnuExit
Caption = "&Exit"
End
End
Attribute VB_Name = "Form1"
Attribute VB_GlobalNameSpace = False
Attribute VB_Creatable = False
Attribute VB_PredeclaredId = True
Attribute VB_Exposed = False
Dim ind As Integer
Private Sub Command1_Click()

If ind = 0 Then
If txt1.Text = "" Or txt2.Text = "" Or txt3.Text = "" Or txt4.Text
= "" Then
MsgBox ("Trebuie sa introduceti valori in casutele de text")
Else
Call linie(txt1.Text, txt2.Text, txt3.Text, txt4.Text)
End If
ElseIf ind = 1 Then

If txt1.Text = "" Or txt2.Text = "" Or txt3.Text = "" Then
MsgBox ("Trebuie sa introduceti valori in casutele de text")
Else
Call cerc(txt1.Text, txt2.Text, txt3.Text)
End If
End If
'Lbl5.Visible = False
End Sub
Private Sub linie(x0 As Double, x1 As Double, y0 As Double, y1 As

Double)
Dim dy As Double
Dim dx As Double
Dim m As Double
Dim y As Double
Dim d As Double
Dim pas As Boolean
Dim a, b As Double
Dim c, e As Double
Dim ypas As Integer
pas = Abs(y1 - y0) > Abs(x1 - x0)
If (pas) Then
a = x0
x0 = y0
y0 = a
b = x1
x1 = y1
y1 = b
End If
If x0 > x1 Then
c = x0
x0 = x1
x1 = c
e = y0
y0 = y1
y1 = e
End If
dx = x1 - x0
dy = Abs(y1 - y0)
d = 0
m = dy / dx
y = y0
If y0 < y1 Then
ypas = 1
Else
ypas = -1
End If
For x = x0 To x1
If (pas) Then
PSet (y, x), QBColor(5)
Else
PSet (x, y), QBColor(4)
End If
d = d + m
If (d >= 0.5) Then

y = y + ypas
d = d - 1
End If
Next x
txt1.Visible = False
Lbl1.Visible = False
End Sub
Private Sub cerc(x0 As Integer, y0 As Integer, r As Integer)
Dim y As Integer
Dim x As Integer
Dim dx As Integer
Dim dy As Integer
Dim f As Integer
f = 1 - r
dx = 0
dy = -2 * r
x = 0
y = r
PSet (x0, y0 + r)
PSet (x0, y0 - r)
PSet (x0 + r, y0)
PSet (x0 - r, y0)
While (x < y)
If (f >= 0) Then
y = y - 1
dy = dy + 2
f = f + dy
End If
x = x + 1
dx = dx + 2
f = f + dx + 1
PSet (x0 + x, y0 + y)
PSet (x0 - x, y0 + y)
PSet (x0 + x, y0 - y)
PSet (x0 - x, y0 - y)
PSet (x0 + y, y0 + x)
PSet (x0 - y, y0 + x)
PSet (x0 + y, y0 - x)
PSet (x0 - y, y0 - x)
Wend
End Sub
Private Sub mnuDreapta_Click()

ind = 0
Call afisare_linie
Form1.Cls
End Sub
Private Sub mnuCerc_Click()
ind = 1
Call afisare_cerc
Form1.Cls
End Sub
Private Sub mnuElipsa_Click()

ind = 2
End Sub
Private Sub mnuExit_Click()
End
End Sub
Private Sub afisare_linie()
ind = 0
txt1.Text = ""
txt2.Text = ""
txt3.Text = ""
txt4.Text = ""
txt1.Visible = True
txt2.Visible = True
txt3.Visible = True
txt4.Visible = True
Lbl1.Visible = True
Lbl2.Visible = True
Lbl3.Visible = True
Lbl4.Visible = True
Lbl1.Caption = "Dati x0 :"

Lbl3.Caption = "Dati y0 :"
End Sub
Private Sub afisare_cerc()
ind = 1
txt1.Text = ""
txt2.Text = ""
txt3.Text = ""
txt1.Visible = True
txt2.Visible = True
txt3.Visible = True
Lbl1.Visible = True
Lbl2.Visible = True
Lbl3.Visible = True

Lbl3.Caption = "Dati raza :"
End Sub
Visual C++
Program.cs
using System;
using System.Collections.Generic:
using System.Windows.Forms;
namespace Grafica
{
static class Program
{
/// <summary>
/// The main entry point for the application.
/// </summary>
[STAThread]
static void Main()
{
Application.EnableVisualStyles();
Application.SetCompatibleTextRenderingDefault(false);
Application.Run(new Form1());
}
}
}
Form1.cs
using System;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Text;
namespace Grafica
{
public partial class Form1 : Form
{
public int contor = 1;

Point p0, p1;
Graphics gr;
int forma = 0;
Color culoare = new Color();
Bitmap bmp;
int raza;
public Form1()
{
InitializeComponent();
culoare = Color.Black;
InitBitmap();
}
private void InitBitmap()

{
bmp = new Bitmap(panel1.Width, panel1.Height);
bmp.SetResolution(panel1.Width, panel1.Height);
panel1.ResumeLayout();
panel1.BackgroundImage = (bmp as Image);
panel1.Refresh();
}
private void button1_Click(object sender, EventArgs e)

{
forma = 1;
}

{
forma = 2;
}
//private void button3_Click(object sender, EventArgs e)

//{
// forma = 3;
//}

{
culoare = Color.Black;
}

{
culoare = Color.White;
}

{
culoare = Color.DarkGray;
}

{
culoare = Color.Gray;
}

{
culoare = Color.DarkRed;
}

{
culoare = Color.Red;
}

{
culoare = Color.YellowGreen;
}

{
culoare = Color.Yellow;
}

{
culoare = Color.DarkGreen;
}

{
culoare = Color.Green;
}

{
culoare = Color.DarkBlue;
}

{
culoare = Color.Blue;
}
private Button button1;

private void panel1_Paint(object sender, PaintEventArgs e)

{
gr = Graphics.FromImage(bmp);
switch (forma)
{
case 1:
{
Algorithms alg = new Algorithms();
alg.Bresenham_line(p0.X, p1.X, p0.Y, p1.Y, gr,
culoare);
break;
}
case 2:
{
Algorithms alg = new Algorithms();
double dist = Math.Sqrt(Math.Pow((p1.X - p0.X),
2) + Math.Pow((p1.Y - p0.Y), 2));
raza = (int)Math.Round(dist);
alg.rasterCircle(p0.X + (p1.X - p0.X) / 2, p0.Y
+ (p1.Y - p0.Y) / 2, raza / 2, gr, culoare);
break;
}
#region
//case 3:
// {
// Algorithms alg = new Algorithms();
// double dist = Math.Sqrt(Math.Pow((p1.X -
p0.X), 2) + Math.Pow((p1.Y - p0.Y), 2));
// raza = (int)Math.Round(dist);
// int raza1;
// double dist1 = Math.Sqrt(Math.Pow(raza, 2) -
Math.Pow(raza / 2, 2));
// raza1 = (int)Math.Round(dist1);
// alg.PlotEllipse(p0.X,p0.Y, raza / 2, 30, gr,
culoare);
// break;
// }
#endregion
private void panel1_MouseClick(object sender, MouseEventArgs e)

{
if (contor != 0)
{
if (contor % 2 == 0) p0 = e.Location;
else
{
p1 = e.Location;
panel1.BackgroundImage = (Image)bmp;
panel1.Refresh();
}
contor++;
//panel1.BackgroundImage = (Image)bmp;
//panel1.Refresh();
}
}
private void panel1_MouseDown(object sender, MouseEventArgs e)

{
contor = 1;
p0 = e.Location;
//panel1.BackgroundImage = (Image)bmp;
//panel1.Refresh();
}
private void panel1_MouseMove(object sender, MouseEventArgs e)

{
if (contor % 2 != 0)
{
p1 = e.Location;
}
}
private void panel1_MouseUp(object sender, MouseEventArgs e)

{
p1 = e.Location;
contor++;
panel1.BackgroundImage = (Image)bmp;
panel1.Refresh();
}
}
}
Algorithms.cs
using System;
using System.Text;
using System.Drawing;
namespace Grafica
{
class Algorithms
{
public void Bresenham_line(int x0, int x1, int y0, int y1,
Graphics gr, Color culoare)
{
bool verif;
if (Math.Abs(y1 - y0) - Math.Abs(x1 - x0) > 0) verif =
true;
else verif = false;
if (verif)
{
int aux = x0;
x0 = y0;
y0 = aux;
aux = x1;
x1 = y1;
y1 = aux;
}
if (x0 > x1)
{
int aux = x0;
x0 = x1;
x1 = aux;
aux = y0;
y0 = y1;
y1 = aux;
}
int deltax = x1 - x0;

int deltay = Math.Abs(y1 - y0);
int error = -deltax / 2;
int ystep;
int y = y0;
if (y0 < y1) ystep = 1;
else ystep = -1;
Pen Pen = new Pen(culoare, 2);
for (int x = x0; x <= x1; x++)
{
if (verif) gr.DrawLine(Pen, new Point(y, x), new
Point(y + 2, x + 2));
else gr.DrawLine(Pen, new Point(x, y), new Point(x + 2,
y + 2));
error = error + deltay;
if (error > 0)
{
y = y + ystep;
error = error - deltax;
}
}
}
public void rasterCircle(int x0, int y0, int radius, Graphics

gr, Color culoare)
{
int f = 1 - radius;
int ddF_x = 0;
int ddF_y = -2 * radius;
int x = 0;
int y = radius;
Pen Pen = new Pen(culoare, 2);
while (x < y)
{
if (f >= 0)
{
y--;
ddF_y += 2;
f += ddF_y;
}
x++;
ddF_x += 2;
f += ddF_x + 1;
gr.DrawLine(Pen, new Point(x0 + x, y0 + y), new

Point(x0 + x + 2, y0 + y + 2));
gr.DrawLine(Pen, new Point(x0 - x, y0 + y), new
Point(x0 - x + 2, y0 + y + 2));
gr.DrawLine(Pen, new Point(x0 + x, y0 - y), new
Point(x0 + x + 2, y0 - y + 2));
gr.DrawLine(Pen, new Point(x0 - x, y0 - y), new
Point(x0 - x + 2, y0 - y + 2));
gr.DrawLine(Pen, new Point(x0 + y, y0 + x), new

Point(x0 + y + 2, y0 + x + 2));
gr.DrawLine(Pen, new Point(x0 - y, y0 + x), new
Point(x0 - y + 2, y0 + x + 2));
gr.DrawLine(Pen, new Point(x0 + y, y0 - x), new
Point(x0 + y + 2, y0 - x + 2));
gr.DrawLine(Pen, new Point(x0 - y, y0 - x), new
Point(x0 - y + 2, y0 - x + 2));
}
}
}
}
Algoritmul Cohen-Sutherland – CLIPPING
DecupareSegmente.java
import java.awt.*;
import java.applet.*;
class Point
{
double x,y;
Point(double thisx, double thisy)
{
x=thisx;
y=thisy;
}
}
public class DecupareSegmente extends Frame

{
public static void main(String[] args){new DecupareSegmente();}
DecupareSegmente()
{ super("Decupare Segmente Prin Algoritmul Cohen - Sutherland");
{public void windowClosing(WindowEvent e){System.exit(0);}});
setSize(500, 400);
add("Center", new CvSegmente());
setCursor(Cursor.getPredefinedCursor(CROSSHAIR_CURSOR));
show();
}
}
class CvSegmente extends Canvas

{
final int xMax = 500,yMax = 400;

private int firstX, firstY,lastX,lastY,points = 0;
//punctele dreptunghiului dupa care facem decupajul
static double xLeft=100.0, xRight=400.0,yBottom=100.0, yTop=300.0;
Point P0,P1;
CvSegmente()
{
resize( xMax, yMax );
this.addMouseListener(new MouseAdapter(){
public void mousePressed(MouseEvent evt)
{
if(points == 0) { firstX=evt.getX(); firstY=evt.getY(); points++;}
else if (points == 1)
{lastX=evt.getX(); lastY=evt.getY(); points = 0;
P0 = new Point((double)firstX,(double)firstY);
P1 = new Point((double)lastX,(double)lastY);
paint(getGraphics());}
}});
show();
}
public void paint(Graphics g)

{
g.setColor(Color.red);
g.drawString("Dati click in doua puncte ale ferestei si se va afisa in
interiorul dreptunghiului",20,20);
g.drawString("segmentul determinat de catre cele 2 puncte ",20, 40);
g.setColor(Color.black);
g.drawRect((int)xLeft,(int)yBottom, (int)(xRight-xLeft), (int)(yTop-
yBottom));
if(CohenSutherland(P0,P1))
{
g.setColor(Color.blue);
g.drawLine((int)P0.x,(int)P0.y, (int)P1.x,(int)P1.y);
}
}
private static int Test(Point P)

{
int Cod = 0;
if(P.y > yTop) Cod += 1; // deasupra dreptunghiului WT

else if(P.y < yBottom) Cod += 2; // sub dreptunghi WB
if(P.x > xRight) Cod += 4; // in dreapta dreptunghiului WR

else if(P.x < xLeft) Cod += 8; //in stanga dreptunghiului WL
return Cod;
}
private static boolean VerifNotOk(int Cod1, int Cod2)

{
if ((Cod1 & Cod2) != 0 ) return true;
return(false);
}
private static boolean VerifOk(int Cod1, int Cod2)

{
if ( (Cod1 == 0) && (Cod2 == 0) ) return(true);
return(false);
}
static boolean CohenSutherland(Point P0,Point P1)
{
int Cod0,Cod1;
while(true)
{
Cod0 = Test(P0);
Cod1 = Test(P1);
if( VerifNotOk(Cod0,Cod1) ) return(false);
if( VerifOk(Cod0,Cod1) ) return(true);
if(Cod0 == 0)
{
double tempCoord; int tempCod;
tempCoord = P0.x; P0.x= P1.x; P1.x = tempCoord;
tempCoord = P0.y; P0.y= P1.y; P1.y = tempCoord;
tempCod = Cod0; Cod0 = Cod1; Cod1 = tempCod;
}
if( (Cod0 & 1) != 0 )
{
P0.x += (P1.x - P0.x)*(yTop - P0.y)/(P1.y - P0.y);
P0.y = yTop;
}
else
if( (Cod0 & 2) != 0 )
{
P0.x += (P1.x - P0.x)*(yBottom - P0.y)/(P1.y - P0.y);
P0.y = yBottom;
}
else
if( (Cod0 & 4) != 0 )
{
P0.y += (P1.y - P0.y)*(xRight - P0.x)/(P1.x - P0.x);
P0.x = xRight;
}
else
if( (Cod0 & 8) != 0 )
{
P0.y += (P1.y - P0.y)*(xLeft - P0.x)/(P1.x - P0.x);
P0.x = xLeft;
}
}
}
}

Projects-2-Computer Graphics & Virtual Reality (Algorithms, Modeling, Programs)

Încărcat de

Informații document

Titlu original

Drepturi de autor

Formate disponibile

Partajați acest document

Partajați sau inserați document

Opțiuni de partajare

Vi se pare util acest document?

Este necorespunzător acest conținut?

Drepturi de autor:

Formate disponibile

Projects-2-Computer Graphics & Virtual Reality (Algorithms, Modeling, Programs)

Încărcat de

Drepturi de autor:

Formate disponibile

Conf. Dr.

Marin Vlada, Universitatea din Bucuresti

Grafica pe calculator / Geometrie computationala

Computer Graphics / Computation Geometry

WEB: http://marinvlada.googlepages.com/, www.ad-astra.ro/marinvlada

E-mail: marinvlada[at]yahoo.com, marinvlada[at]gmail.com

Course: COMPUTER GRAPHICS | Bachelor of Science (Computer Science)

Software: C++, OpenGL, Java 3D, Java Script, VRML, SVG

PROIECT – generare litere folosind curbe B-spline

Curbe B-spline si aplicatii

Curbele B-spline de gradul II (parabolice)

Evident, pentru t=0 si t=1 avem, respectiv

In figura urmatoare se prezinta aceste proprietati.

int round(float nr)

int LUNG() // pentru pasul de discretizare; nr. de diviziuni

Date pentru testare ( nr. puncte si coordonate)

PROIECT – generare litere mici - editare

Programul litere.cpp // utilizeaza curbe B-spline parbolice

//functie "round" pentru rotunjire

for (i=1;i<= n;i++)

//partea principala "main"

for(int i1=1; i1<=15; i1++)

15 fisiere pentru generarea literelor A-O de tip cursiv

sfarsit de fisier= 5000

a.txt b.txt c.txt d.txt e.txt

f.txt g.txt h.txt i.txt j.txt

k.txt l.txt m.txt n.txt o.txt

Proiect - EDITOR si curbe B-spline

{program editor introd. puncte plus aproximarea liniei

PROIECT –jocul “sarpe”

void push(struct q t);

//verifica daca s-a lovit capul de margine

PROIECT – sistemul solar

#include <stdio.h> /* Program ce simuleaza miscarea de revolutie */

float rotmercur = 360.0/88.0, rotvenus = 360.0/225.0, rotpamant =

void soare(int raza)

/* Marcarea orbitelor planetelor din partea stanga */

/* marcarea orbitelor planetelor din partea dreapta */

//jup =0.083 sat=0.033 uran=0.011 nep = 0.0059 pluto =0.0039

/* Miscarea Planetei Mercur */

/* Miscarea Planetei Venus */

/* Miscarea Planetei Marte */

/* Miscarea Planetei Jupiter */

/* Miscarea Planetei Jupiter2 */

/* Miscarea Planetei Saturn */

/* Miscarea Planetei Uranus */

/* Miscarea Planetei Neptun */

/* Miscarea Planetei Pluto */

setcolor(7); /* incadrarea planetelor*/

setviewport(5,105,200,200,0); /* desenare jupiter si marte */

drawplanet(0,248,0,23,4); /* desenare Uranus */

initgraph(&driver, &mod, "");

setviewport( getmaxx()/4+1, getmaxy()/2+64,getmaxx()/2, getmaxy(),0);

while (!kbhit() && i<65535)

setcolor(15); /* afisarea anului */

Varianta in Java Script

<title>Sistemul solar -- Neata Paul &ltneatapaul@yahoo.com&gt

// (name, id, src, cur_depl, inc_depl, x_orb, y_orb, center,

// functia care contruieste obiectul de tip planeta

// functia asta se apeleaza automat la incarcare si 'scrie' pe ecran

// planatele le punem aiurea si invocam o iteratie care le va

main_iteration(); // k sa le puna unde trebuie

// insereaza o imagine in document
