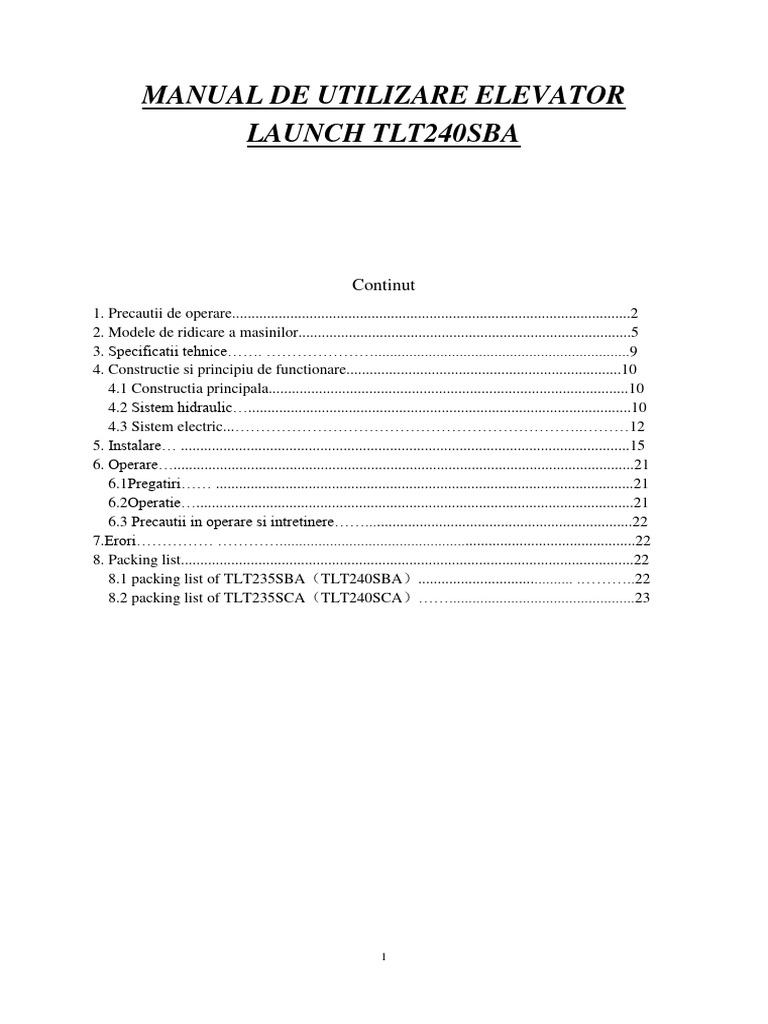

MANUAL DE UTILIZARE ELEVATOR

LAUNCH TLT240SBA

Continut
1. Precautii de operare.......................................................................................................2
2. Modele de ridicare a masinilor......................................................................................5
3. Specificatii tehnice……. …………………..................................................................9
4. Constructie si principiu de functionare.......................................................................10
4.1 Constructia principala.............................................................................................10
4.2 Sistem hidraulic…...................................................................................................10
4.3 Sistem electric...…………………………………………………………..………12
5. Instalare… ....................................................................................................................15
6. Operare….......................................................................................................................21
6.1Pregatiri…… ............................................................................................................21
6.2Operatie….................................................................................................................21
6.3 Precautii in operare si intretinere…….....................................................................22
7.Erori…………… …………............................................................................................22
8. Packing list.....................................................................................................................22
8.1 packing list of TLT235SBA（TLT240SBA）........................................ .………..22
8.2 packing list of TLT235SCA（TLT240SCA）……................................................23

1
1 Precautii operare
Descriere semne avertizare：
（1）Cititi manualul de instructiuni cu atentie inainte de operare.

（2）A se folosi doar de personal calificat！

（3）Nu este permisa prezenta altor personae in apropierea elevatorului, in afara de

personalul autorizat.

（4）Este necesara intretinerea adecvata si inspectarea pentru o operare sigura.

2
（5）Interzisa folosirea elevatorului stricat！

（6）Niciun picior nu este in apropierea elevatorului cand acesta se coboara!

（7）Pozitia centrului de gravitate intre adaptoare.

（8）Folositi punctele de ridicare sugerate de constructorul elevatorului.

3
（9）Evitati leganarea excesiva a vehicolului pe elevator.

（10）Mentineti libera zona de ridicare in timpul ridicarii sau coborarii vehicolelor.

（11）Mentineti zona curata pentru ca e riscul de alunecare.

（12）Nu suprareglati controalele de auto-inchidere.

4
（13）Folositi intotdeauna standuri de siguranta cand indepartati sau instalati componente
grele.

（14）Adaptoarele auxiliare pot reduce capacitatea de incarcare.

2 Modele de elevatoare

Descrierea modelului

Model No. descriere

TLT235SBA 3.5Ton (7875 lbs. ), elevator cu doua coloane, simetric, trecere jos (figura1)
TLT240SBA 4Ton (9000 lbs.) elevator cu doua coloane, simetric, trecere jos (figura1)
TLT235SCA 3.5Ton (7875 lbs.),elevator cu doua coloane, simetric, trecere sus(figura 2)
TLT240SCA 4 Ton(9000 lbs.) elevator cu doua coloane, simetric, trecere sus (figura 2)

5
TLT235SBA（TLT240SBA） Elevator cu doua coloane hidraulic cu trecere pe jos

2750
Top sheave
Main leg

Clolumn leg

Push-start button

Power unit

2860
Lift lowering handle

Carriage
800
min120

Swing arm Lifting pad

Floor plate

3370

6
 TLT235SCA（TLT240SCA） Elevator doua coloane si trecere pe sus

2750

Overhead beam

Up-right

Main leg

Column leg

Up-start buttoon
3840

Power unit

2780
Lift lowering Handle

Carriage
min120

800

Swing arm Lifting pad

3370

图2

7
 Simetric

Width 2486
00

R1
R8

11
0
366
300

300

986

2518

2586

3370

Figura 3

8
 Asimetric

Width 2486
R1
0 14
3 305 0
R8
300

2665
R13
10
0
R90

2586
3370

Figura 4

9
3 Specificatii tehnice
Capacitate Inaltime Timp Timp Alimentare Latime Inaltime
Latime
Model Nr. incarcare ridicare ridicare coborare motor elev elev
mm
Ton(lbs.) mm S S Kw mm mm

TLT235SBA 3.5(7875) 1950 50 40 2.2 2486 3370 2860

TLT240SBA 4 (9000) 1950 50 40 2.2 2486 3370 2860

TLT235SCA 3.5(7875) 1950 50 40 2.2 2486 3370 3840

TLT240SCA 4 (9000) 1950 50 40 2.2 2486 3370 3840

Note
 Alimentare monofazica： 220V 50HZ。
 Putere： 2.2KW。
 Optional pentru alimentare trifazica

4 Constructie si principiu de lucru

4.1 Constructia principala
 Sistem de ridicare: Cilindrul hidraulic este instalat intre cele doua coloane. Cand
uleiul intra in cilindru, pistonul se va ridica si tamponul de glisare se va misca in sus
cu cablurile de otel.（Figura10,11）
 Sistem de sustinere: dupa ce vehicolul intra intr-o zona de lucru, lungimea si unghiul
bratelor pot fi reglate astfel sa se pozitioneze bratele sub punctele de sustinere ale
vehicolelor. In acelasi timp, inaltimea bratelor poate fi reglata cu ajutorul suruburilor
din suportul bratelor.
 Sistem de echilibrare: Penru a se echilibra vehicolul in timpul ridicarii sau coborarii
acestuia, doua cabluri de otel sunt folosite pentru a realiza conexiunea cu suportul,
pentru o miscare simultana. (Figura 8, 9)
 Sistem de blocare electromagnetic: Dispozitivele de blocare pt siguranta sunt
instalate intre cele doua coloane. Cand elevatorul incepe sa functioneze, sistemul de
blocare este activate pentru a asigura pozitia de blocare si a preveni caderea.
Sistemul de blocare electromagnetic instalat in ambele coloane asigura dubla
protectie elevatorului.

10
4.2 Sistemul hidraulic

Diagrama principala a sistemului hidraulic a elevatorului cu trecere pe sus

9 9

8
T

4 7
5

2 1
11
3 10

Figura 5 （a）
1- Pompa cu roti dintate, 2-motor, 3-filtru ulei, 4-valva verificare, 5-valva siguranta,
6-valva electromagnetica 7-valva Sevo, 8-furtun, 9-cilindru ridicare,
10-indicator de nivel, 11-filtru aer

Diagrama principala a sistemului hidraulic a elevatorului cu trecere pe jos

11
 9 9

8 8

4 7
5

2 1
11
3 10

Figura 5 （b）
1 - Pompa cu roti dintate, 2-motor, 3-filtru ulei, 4-valva verificare, 5-valva siguranta,
6-valva electromagnetica 7-valva Sevo, 8-furtun, 9-cilindru ridicare,
10-indicator de nivel, 11-filtru aer

Components list of hydraulic system

Serial
Nume Specificatii Cant. Remarci
No.
Pompa roti
1 1
dintate

Monofazic 220V， 50Hz，

2 Motor 2.2kW sau trifazic 380V， 1 Optional
50Hz，2.2kW

3 Filtru ulei 1
4 Valva verificare 1
5 Valva siguranta 1
Valva
6 1
electromagnetica
7 Valva sevo 1
8 Furtun 2
9 Cilindru ridicare Ø 63/ 885 2
Indicator de
10 1
nivel
11 Filtru aer 1

12
Principiul de functionare al sistemului hidraulic：
Cand apasati butonul de start din unitatea de comanda pentru a porni motorul, pompa de ulei
va porni si va absorbi uleiul sub presiune din rezervor, apoi il va trimite spre cilindrul de ulei
9 pistoane pentru a se misca. In acest timp, valva de siguranta 5 se va inchide, a carei
presiune a fost setata de catre producator pentru asigurarea capacitatii stabilite. Oricum, cand
presiunea in sistemul hidraulic este mai jos de limita, uleiul se va revarsa automat. Eliberarea
butonului de start va opri alimentarea cu ulei, ridicarea este realizata, deci lucrul la masina
poate incepe. Pentru coborare, apasati butonul de deblocare, dispozitivul de blocare
electromagnetic va lasa incaractura. Acum apasati valva pentru coborare manuala si valva
electromagnetica pentru incheiere, uleiul va fi eliberat pt coborare.（Fig. 5）

4.3 Sistem electric

Principiul electric pentru elevatoarele cu doua coloane

Cand coborati manual, componentele din cadrul liniei

13
punctuate nu vor functiona. Impedanta si dioda au fost instalate in buton. Impedanta si dioda
au fost instalate in buton.

Lista componentelor electrice

Serial No Code name Name Specification Qty Remark

SA1 Power supply switch LW39-16RE04/2-GR

KM1 Contactor GSC1-0910 AC36V

M1 Motor 三相380V 2.2KW

FU1 Breaker DZX4-40 D3

T1 Transformer BK-160 220V/36V,27V,6.3V

VD1 Rectifier 10A 200V

SB1 Button for lift KAN-A10D

SB3 Botton for lowering KAN-A10D
SB2 Unlock button KAN-A10D

YT 3-hole socket 250V 15A

YA1,YA2,YA3 Electromagnet DC24V

Y1 Electromagnetic DC24V

SQ1 Bit limit switch ME-9101

D1 Back light

Descrierea semnelor operatiilor electrice：

Buton pt ridicare Buton blocare

14
 Buton pt coborare Buton deblocare

1．Conectati cablurile adecvat, porniti alimentarea

2．In timpul ridicarii, apasati butonul pentru ridicare, astfel pompa de ulei va incepe sa
functioneze sis a determine ridicarea incarcaturii. Eliberati butonul pentru a opri
ridicarea. Apasati butonul de blocare pentru a preveni caderea incarcaturii.
3．In timpul coborarii, apasati prima data butonul pentru ridicare, apoi simultan apasati
butonul pentru coborare si cel de deblocare, incarcatura va cobori.
4．Daca nu exista niciun raspuns la apasarea oricarui buton, verificati intrerupatorul.
5．Stecher alimentare este YT ～36V, 60W.

5 Instalare
1. Realizati podeaua de ciment（Fig. 6) pentru instalare.
Cand cimentul se intareste, strangeti coloanele cu buloane de M18X160 pentru a aduce
coloanele in pozitie perpendiculara cu nivelul pamantului. Pastrati in minte operatia de
siguranta.
2. Puncte esentiale：
1) Pentru modele cu coloane extinse, conectati coloanele laterale cu cea principala.
(Fig. 7）
2) Ridicati cele doua coloane in pozitia det de panoul de pe podea si grinda principala
superioara. Ansamblati componentele pe grinda si partea superioara, apoi strangeti
suruburile.
3) Ridicati placile de alunecare la nivelul cel mai putin protejat. Dupa ce sistemul de
blocare electrohidraulica porneste, instalati cele doua cabluri de otel si duceti cele
doua placi de alunecare in punctul cel mai jos si reglati suruburile si rezistenta celor
doua cabluri in modul cel mai adecvat. (Fig 8, 9)
4) Conectati furtunele de ulei dupa cum se cere.（Fig. 10,11）
5) Instalati motorul dupa cum se cere. Butonul de alimentare trebuie sa fie instalat in
apropierea elevatorului astfel ca alimentarea sa poata fi oprita prntru reparatii sau
urgente.
6) Gresati interiorul celor doua coloane.
7) Test de ridicare fara greutate: verificati forta celor doua cabluri de otel pentru a
asigura miscarea echilibru a lateralelor. .
8) Test ridicare cu incarcatura: verificati daca sistemul hidraulic functioneaza corect.

15
 Instalarea coloanelor

Leg Leg

M18×160
Anchor bolts Floor plate
ten sets
250

Concrete pad 3000PSI min

2

3370
25 2610
235 235
520

φ
380

20
2770
150

φ22

Dill Clean Run nut down Fasten

figura 6

16
Assembly drawing of Carriage leg, Up right, Top cable Sheave and Overhead Beam
for TLT235SCA(TLT240SCA)

4-M12×25 Hex bolts

8-φ12 Flat gasket
8-M12 Ring gasket
4-M12×45 Nut

Over head beam

Top cable

Up-right

M12×35 Hex bolts

φ12 Flat gasket Post
φ12 Ring gasket
M12 Nut
Sixteen sets

figura 7

17
 Ansamblul cablurilor de otel pt TLT235SBA（ TLT240SBA）

Top cable sheave

M16 Nut
Four sets

Carriage

L=8536 Steel cable

Bottom cable sheave

Avertizare：Reglati cele doua cabluri de otel la aceeasi tensiune data, si faceti ca cele doua
platane sa se miste in echilibru

Figure 8

18
 Ansamblul de cabluri de otel pt TLT235SCA（ TLT240SCA）

Top cable sheave

L=10960 Steel cable

M16 Nut
Four sets
Carriage

Bottom cable sheave

Avertizari: Reglati cele doua cabluri de egalizare astfel ca acestea sa

fie la aceeasi tensiune data si cele doua platane sa fie in miscare de
echilibru.
figura 9

19
 Instalarea sistemului hidraulic pt TLT235SBA（ TLT240SBA）

φ10 Ring gasket

φ10 Flat gasket
M10×25 Bolts
2 sets

Post
Hydr hose

Reverse fittings

Oil cylinder
Power unit

Hydr hose

90°fittings

Fittings Hydr hose Fittings

figura 10

20
 Instalarea sistemului hidraulic pt TLT235SCA（ TLT240SCA）

90°fittings Hydr hose 90°fittings

￠10 Ring gasket

￠10 Falt gasket
M10×25 Bolts
2 sets

Post
Hydr hose

Reverse fittings

T type fitting

Oil cylinder
Power unit

Hydr hose

90°extended fittings
Hydr hose

90°extended fittings

Figura 11

6 Operare
6.1 Pregatiri
 Gresati toate suprafeteleLubricate all touching surfaces of carriages with generic
lithium grease (GB7324-87) and it should be even for all surfaces.
 Fill N32 (SY1227-82) or NY46 into hydraulic pump.

6.2 Operation

21
  Check to see whether the power supply of the motor is properly installed.
 Check all connecting bolts and nuts to make sure of being fastened.
 Press button to start the motor and to lift the sliding pad. Release the button to stop
the sliding pad. To lower the sliding pad, engage the electromagnetic unit. If it
doesn’t work, press the lift button. Press oil return handle to lower the sliding pad,
and release the button to stop it. For vehicle repairing, lift the vehicle up to the proper
height, then press oil returning handle to engage the electromagnetic lock system.
 Repeat several times to expel the air left in the hydraulic system.

6.3 Cautions in operation and maintenence

 Centrul de greutate al vehicolelor poate fi diferit. Mentineti centrul de greutate in
interiorul zonei formale de catre cele doua coloane. Reglati bratul pentru a-l pune sub
standul de prindere/suport al vehicolului.
 Cand utilizati elevatorul cu grinda de planseu, asigurati-va ca vehicolul nu intra in
contact cu grinda.
 Cititi avertizarile si semnele cu atentie.
 Valvele hidraulice au fost reglate inainte de a parasi fabrica. Nu le mai reglati.
 Anumiti parametrii pot fi expusi unor schimbari, conform cerintelor producatorilor.

7Troubleshooting
Serial
Defectiune Solutii
No.
Two sliding pads move at different Tighten the screw connected to the steel
1
steps. wire (regular checking is recommended).
Sistemul de siguranta electromagnetic Unfasten the bolts and adjust the handle
2 nu poate fi activate (niciun sunet cand of electromagnetic system, then tighten
urca) the bolts.
Opriti alimentarea si chemati electricianul
3 Motorul si electronica nu functioneaza. pentru service.

Elevatorul nu poate ridica sau cade Curatati Clean oil returning valve and
4
automat dupa ridicare. change it when necessary

Scurgere de ulei la conexiunea cu Connect again with tape or tighten the

5
furtunele bolt connected to oil hose.

8 Packing list
8.1 Packing list for floor plate two–post lift of TLT235SBA（ TLT240SBA）

Serail Code Name Qty. Package No. Remark

No.
1 Instruction manual 1

22
2 Conformity attestation 1
3 Package list 1
4 Components for Main 1 Package No. 1
leg
5 Components for column 1 Package No. 1
leg
6 QJY2040-12-00 Top cover 2 Package No. 1
7 QJY2040-20-00 Carriage 2 Package No. 1
8 Lifting system 2 Package No. 1 Oil cylinder
etc.
9 QJY2040-32-00
Pin axle 2 Package No. 1
QJY2040-33-00
10 QJY2040-40-00 Base board 1 Package No. 1
11 QJY2040-10-08 Steel cable(4 pieces of Installed in
2 Package No. 1
M16 bolts per cable） main leg
L=1440、
L=2790
12 Hydr. hose 2 Package No. 1
（installed in
main leg）
13 Power unit 1 Package No. 2 With motor
14 Electric system 1 Package No. 2
15 QJY2040-32-05-00 Safe pad 4 Package No. 2
16 QJY2040-10-11 Electromagnetic unit 3 Package No. 2
17 QJY2040-10-03 Safte plate 3 Package No. 2
18 QJY2040-10-04 Load block 3 Package No. 2
19 GB818-85 、 GB95- Bolt M4×16、 10 for Package No. 2 For installation
85、GB93-87 Flat gasket4 、 ring each of electric
gasket 4 system
For
GB818-85、GB95- 12 for
20 Bolt M5×12、Gasket 5 Package No. 2 electromagnetic
85 each
unit
21 GB5781-86 Bolt M6×20 3 Package No. 2 For load block
GB5781-86、GB95- Bolt M10X25、flat gasket 2 for For installation
22 Package No. 2
85、GB93-87 10、ring gasket 10 each of power unit

23
 GB818-85、 Bolt M8×12、 8 for
23 Package No. 2
GB/T848-85 Gasket 8 each
24 Bolt M18X160 10 for Package No. 2
each
25 JB/T982-94 Sealling gasket 14 4 Package No. 2

26 X-GWG-03 900 fitting 1 Package No. 2

27 X-GWG-04 Long fitting 1 Package No. 2
28 X-GWG-05 Short fitting 2 Package No. 2
29 Top cover（plastics） 2 Package No. 2
30 Cover for 3 Package No. 2
electromagnetic unit
（plastics）
31 Handle ball BM6×20 3 Package No. 2
32 GB818-85 Bolt M4×12 6 Package No. 2
33 4-cord Wire 1.2m Package No. 2
2
YZ1.5mm
34 Wires for fastening 1 Package No. 2
2
0.75 mm

8.2 Packing list for Gantry two-post lift of TLT235SCA(TLT240SCA)( Main leg and the Up
Right packed singly ）：

Serial Code Name Qty. Package No. Remark

1 Instruction manual 1
2 Conformity attestation 1
3 Packing list 1

24
4 Assembly of main leg 1 Package No. 1
5 Assembly of column 1 Package No. 1
leg
6 QJY2040L-10-06-00 Top cover 2 Package No. 1
7 QJY2040L-20-00 Carriage component 2 Package No. 1
8 Liting system 2 Package No. 1 Oil cylinder
included
9 QJY2040-32-00 Pin axle 2 for Package No. 1 Safe pad not
QJY2040-33-00 each included
10 QJY2040L-10-08 Steel cable（ 4 pieces 2 Package No. 1 For installation of
of M16 nuts for each） main leg
L=1060、L=9750
11 Hydr.hose 2 Package No. 1 （installed in
main leg）
QJY2040L-10-06-00 Top cover 2 Package No. 1 （Installed in
12
main leg）
13 Power unit 1 Package No. 2 With motor
14 Electric system 1 Package No. 1

15 QYJ2040-32-05-00 Safe pad 4 Package No. 1

16 QJY2040L-41-01 bracket 1 Package No. 1
17 QJY2040-10-11 Electromagnetic unit 3 Package No. 1
18 QJY2040-10-03 Safe plate 3 Package No. 1
19 QJY2040-10-04 Load block 3 Package No. 1
GB818-85、GB95-85 Bolt M4×16 、 Flat 10 for Package No. 2 For use of electric
20
GB93-87 gasket 4、Ring gasket 4 each system
Bolt M4×12 、 Nuts 2 for
GB818-85
21 M4×25 each Package No. 2 For use of switch
GB95-85 Flat gasket 4 4

GB818-85、GB95-85 Bolt M5×12 、 Flat 3 for Package No. 2 For use of bracket
22
gasket 5 each
For use of
12 for
23 GB818-85、GB95-85 Bolt M5×12、gasket 5 Package No. 2 electromagnetic
each
unit
24 GB5781-86 Bolt M6×20 3 Package No. 2 For use of load

25
 block
25 8 for
GB818-85 GB/T848-85 Bolt M8×12、gasket 8 Package No. 2
each
GB5781-86、GB95- Bolt M10X25, flat gasket 2 for For installation of
26 Package No. 2
85、GB93-87 10, ring gasket 10 each power unit
GB5781-86、GB93- Bolt M12X35,ring gasket 16 for
For installation of
27 87、GB/T41-86 12, nut M12 each Package No. 2
up right leg
GB95-85 Flat gasket 12 32
Bolt M12X35, M12X45 4 for For installation of
28 GB5781-86 each Package No. 2 overhead beam
and top cover
Flat gasket 12, ring gasket 8 for For installaion of
29 GB95-85、GB93-87 12 each Package No. 2 overhead beam
and top cover
30 Bolt M18X160 10 Package No. 2

31 JB/T982-94 Assembly of sealing 3 Package No. 2

gasket 14
32 LX-GWG-05 Long fitting 2 Package No. 2

33 LX-GWG-04 Head adjustable 900 1 Package No. 2

fitting
34 LX-GWG-03 T type fitting 1 Package No. 2

35 Switch ME-9101 1 Package No. 2

36 QJY2040L-50-01 Oil pipe 1 Package No. 2

4-cord supply cable 1.2m Package No. 2

37 2
YZ1.5mm
Wires for fastening 0.75 1 Package No. 2 Use for gantry lift
38 2
mm
30 Cover of 3 Package No. 2
electromagnetic unit
（plastic）
31 Handle ball BM6×20 3 Package No. 2
32 GB818-85 Bolt M4×12 6 Package No. 2
39 Up right leg 2 Package No. 3

26
 40 QJY2040-42-00 Over head beam 1 Package No. 4

8.3 Parts list for gantry two post lift TLT235SCA(TLT240SCA) (Main leg and the up-
right leg packed in connetion）：

Serial Code Name Qty. Package No. Remark

No.
1 Instruction manual 1
2 Conformity attestation 1
3 Packing list 1

27
4 Assembly of main leg 1 Package No. 1
5 Assembly of column 1 Package No. 1
leg
6 QJY2040L-10-06-00 Top cover 2 Package No. 1
7 QJY2040L-20-00 Carriage 2 Package No. 1
8 Lifting system 2 Package No. 1 Oil cylinder
included
9 QJY2040-32-00 Pin axle 2 for Package No. 1 Safe pad
QJY2040-33-00 each excluded
10 QJY2040L-10-08 Steel cable（4 pieces 2 Package No. 1 （installed in
of M16 for each） main leg）
L=1060、
L=9750
11 Hydr. hose 2 Package No. 1
（installed in
main leg）
12 Up-right leg 2 Package No. 1
QJY2040-42-00 Over head beam 1 Package No. 1
13
bracket
14 QJY2040L-10-06-00 Top cover 2 Package No. 1
15 Power unit 1 Package No. 2 With motor
16 Electric system 1 Package No. 2

17 QYJ2040-32-05-00 Safe pad 4 Package No. 2

18 QJY2040L-41-01 Bracket 1 Package No. 2
19 QJY2040-10-11 Electromagnetic unit 3 Package No. 2
20 QJY2040-10-03 Safe plate 3 Package No. 2
21 QJY2040-10-04 Load block 3 Package No. 2
GB818-85、GB95-85 Bolt M4×16, flat 10 for Package No. 2 For use of
22
GB93-87 gasket 4, ring gasket 4 each electric system
Bolt M4×12,nut 2 for
GB818-85
23 M4×25 each Package No. 2 For switch
GB95-85 Flat gasket 4 4

GB818-85、GB95-85 Bolt M5×12, flat 3 for Package No. 2 For bracket

24
gasket 5 each
25 GB818-85、GB95-85 Bolt M5×12, gasket 5 12 for Package No. 2 For

28
 each electromagnetic
unit
26 GB5781-86 Bolt M6×20 3 Package No. 2 For bracket
27 Bolt M8×12, gasket 8 8 for
GB818-85 GB/T848-85 Package No. 2
each
GB5781-86、GB95- Bolt M10X25, flat gasket 2 for For installation
28 Package No. 2
85、GB93-87 10, ring gasket 10 each of power unit
Bolt M12X35, M12X45 4 for For installation
each of overhead
29 GB5781-86 Package No. 2
beam and top
plate
Flat gasket 12, ring 8 for For installation
gasket 12 each of overhead
30 GB95-85、GB93-87 Package No. 2
beam and top
plate
31 Bolt M18X160 10 Package No. 2

32 JB/T982-94 Asembly of sealing 3 Package No. 2

gasket 14
33 LX-GWG-05 Long fittings 2 Package No. 2

34 LX-GWG-04 Head adjustable 900 1 Package No. 2

fittings
35 LX-GWG-03 ‘T’ type fittings 1 Package No. 2

36 Switch ME-9101 1 Package No. 2

37 QJY2040L-50-01 Oil pipe 1 Package No. 2

38 Electromagnetic unit 3 Package No. 2

（plastics ）
39 Handle ball BM6×20 3 Package No. 2
40 GB818-85 Bolt M4×12 6 Package No. 2
4-cord supply cable 1.2m Package No. 2
41
YZ1.5mm2
Wires for fastening 1 Package No. 2 Only for gantry
42
0.75 mm2 lift

29
