ENERGOMONTAJ S.A.

PRODUCE SI LIVREAZÃ:
MANUFACTURES AND DELIVERS:
D
Š MECANO G - C-01
D
Cable rackings G C-01
Š MECANO U D C-02
Cable rackings U D - C-02
Š Cleme si bride C-03
Clamps and fittings C-03
Š Jgheaburi - C-04
Troughs C-04
Š Elemente de împãmântare P-01
Earthing elements P-01
Š Accesorii de fixare F-01
Mounting fixtures F-01
Š Accesorii de montaj pentru telefonie C-05
Mounting accessories fot telephony C-05
MONTEAZÃ:
ERECTS
Š Trasee si cabluri electrice de energie.
Electrical cables and cable trays.
Š Instalatii de stins incendiu.
Fire extinguishing systems.
Š Tevi de impuls de înaltã si joasã presiune.
High and low pressure impulse pipes.
Š Bare capsulate mono si trifazate.
Single phase and three phase enclosed busbars.
Š Protectii mecanice pentru cabluri electrice, etc.
Mechanical shields for electrical cables, a.s.o..
Š Trasee fibrã opticã.
Optical fiber raceways.

PROIECTEAZÃ:
DESIGNS
Š Ansambluri si subansambluri necesare lucrãrilor de montaj.
Assemblies and subassemblies unit required for erection works.
ŠEstacade pentru trasee de cabluri.
Scaffold bridges for cable trays.
Š Constructii metalice.
Metallic structures.
Š Instalatii electrice pentru automatizãri si pentru curenti slabi.
Electrical installations for automation and control and weak currents.
ENERGOMONTAJ S.A
DIVIZIA
INSTALATII ELECTRICE Catalog MECANO - G D Pag.
SI AUTOMATIZARI 1

Catalog MECANO - G D

1. Generalitãti
D
Sistemul MECANO - G oferã o posibilitate rapidã si
usoarã de a construi o varietate aproape nelimitatã de ele-
mente structurale metalice de sustinere pentru instalatii
electrice, mecanice si constructii industriale.
D
2. Descrierea sistemului MECANO - G

Sistemul prezentat este rezultatul cercetãrilor si experi-

mentãrilor în practica curentã de pozare a cablurilor în
instalatiile electrice pe confectii metalice de tip greu sub
D
denumirea “MECANO - G ”.
Sistemul prezintã avantaje multiple:
- este un sistem flexibil si poate rezolva o varietate
mare de situatii apãrute în practica pozãrii cablurilor electri-
ce, a tevilor din instalatii, diverse constructii metalice, etc.;
- montajul elementelor sistemului se face usor si nu
necesitã personal cu calificare deosebitã;
- este compus din elemente tipizate, asigurã interschim-
babilitatea elementelor componente si o esteticã industrialã
deosebitã putând fi folosit într-un numãr nelimitat de variante
constructive;
- este un sistem robust si cu o capacitate portantã
deosebitã, asigurã mentinerea integritãtii elementelor compo-
nente în timpul exploatãrii acestora;
- nu necesitã sudurã sau gãurire la montaj; la închiderea
traseului se vor face adaptãri functie de configuratia traseului;
- este un sistem ajustabil, demontabil si reutilizabil.
ENERGOMONTAJ S.A
DIVIZIA
INSTALATII ELECTRICE Catalog MECANO - G D Pag.
SI AUTOMATIZARI 2

Principalele elemente ale sistemului sunt:

- montantii simpli si dubli cu h=45, h=25 si h=60 si cu
lungimi intre 300mm si 3000mm iar la comanda speciala se
pot fabrica montanti cu lungimi pana la 6000mm.
- console simple si duble;
- scãrite cu înãltimea de 60 mm sau 100 mm si lungimea
3000 mm;
- elemente specifice pentru asamblare;
- elemente de fixare.
Produsele sunt confectionate din tablã de otel si acope-
rite cu un strat protector anticoroziv de zinc.
Zincarea poate fi galvanicã sau termicã asigurând o
bunã functionare în medii de agresivitate pânã la clasa 3,
conform STAS 10128. De asemenea, produsele se pot livra si
vopsite. Aceste cerinte se vor detalia la întocmirea comenzii.
La întelegere, prin comandã specialã, se pot executa alte
dimensiuni si produse decât cele prezentate în acest catalog.
La alegerea elementelor se va avea în vedere cã des-
chiderea maximã de sprijin a scãritelor este de 2500 mm iar
încãrcarea maximã admisã este de 149 [daN/m] pentru scãri-
tele cu înãltimea de 100 mm, respectiv 110 [daN/m] pentru
scãritele cu înãltimea de 60 mm.
Fixarea diferitelor elemente de montant se va face de
regula cu suruburi M12x(35 - 40) clasa 8.8, iar imbinarea scaritelor
de face cu suruburi M8 x 30, clasa 8.8.
D
Produsul MECANO - G este în strânsã legãturã cu
D
celelalte produse existente : Cleme, Jgheaburi, MECANO - U
fabricate de ENERGOMONTAJ I.E.A. în conditii de calitate si
la preturi competitive.
Informatiile continute în catalog referitoare la încãrcãri si
sarcini portante servesc drept ghid si pot fi utilizate dupã
propria dorintã.
ENERGOMONTAJ S.A
DIVIZIA
INSTALATII ELECTRICE Catalog MECANO - G D Pag.
SI AUTOMATIZARI
3

3. Asigurarea calitãtii

Produsul se poate executa la cerere într-un sistem de

asigurarea calitãtii implementate în cadrul I.E.A.:
- sistem de asigurarea calitãtii conform STAS ISO 9000.
- sistem de asigurarea calitãtii în baza Legii 6 /1982,
respectiv produsele vor fi în categoria IV conform NRAC -
AQ.04.
În cazul în care în comandã nu se precizeazã sistemul
de asigurare a calitãtii, produsul se executã în conditii normale.

4. Codificarea

În concordantã cu sistemul de codificare ENERGOMONTAJ

D
I.E.A., un reper apartinând produsului MECANO - G se codi-
ficã astfel :

[Link] - YY

Cod numeric pentru reper

Cod alfabetic pentru reper
D
Codul MECANO - G

5. Comanda

Pentru comandã se va preciza codul produsului ,denu-

mirea reperului, codul alfanumeric al reperului, clasa de
agresivitate a mediului în care va fi utilizat, dacã nu se
doreste în clasa 3. Dacã este cazul, se va mentiona siste-
mul de asigurarea calitãtii în care se doreste a fi executat.
Exemplu: C.01 Montant dublu MM-83, conform ISO 9000
ENERGOMONTAJ S.A
DIVIZIA
INSTALATII ELECTRICE Catalog MECANO - G D Pag.
SI AUTOMATIZARI
4

6. Livrarea
D
MECANO - G poate fi livrat numai de societatea noastrã,
acestea fiind proprietatea ENERGOMONTAJ I.E.A. si proteja-
te conform legii de Oficiul de Stat pentru Inventii si Mãrci.
Produsele se livreazã în stare ambalatã si conservate,
corespunzãtor conditiilor de transport si depozitare precizate
de beneficiar.

D
Produsul MECANO - G poate fi utilizat într-o gamã
foarte mare de aplicatii, deci se vor putea rezolva si pro-
blemele dumneavoastrã.
Pentru detalii suplimentare, precum si pentru asistentsã
la proiectare - Serviciul de Proiectare - I.E.A., este la dispo-
zitia dumneavoastrã.

D
- Marcã înregistratã.
ENERGOMONTAJ S.A
DIVIZIA
INSTALATII ELECTRICE SI Catalog MECANO - G D Pag.
AUTOMATIZARI 5

D
MECANO - G CATALOGUE

1. Generals
D

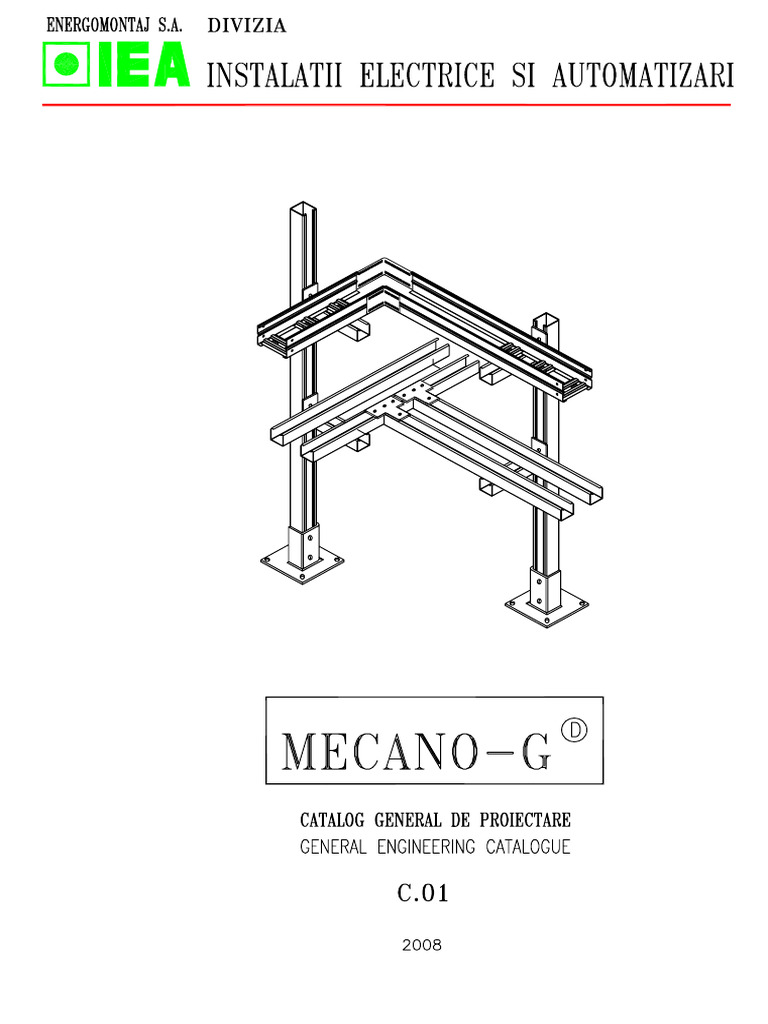

MECANO - G System offers a fast and easy possibility
to construct an almost unlimited variety of steel components
provided for structure support of the industrial, mechanical
and electrical services.
D
2. Description of MECANO - G System

The system included herein is the result of the researches

and experiments pending to current practice, applied when
installing cables on heavy duty metallic structures, in electrical
D
equipments, with the denomination “MECANO - G ” .
The system presents various advantages:
- it is a flexible system that can solve a great variety
of situations that may occur when installing electrical cables,
equipment pipes, various metallic structures, a.s.o.;
- erection of the system components is carried out easily
and it doesn’t require especially trained staff;
- it is made of standard components, thus assuring inter-
changeability of the components and a special industrial
aesthetics, so that it can be used in various and unlimited
applications;
- it is a system of heavy duty type, with special supporting
capacity, assuring the maintenance of the integrity of the
components during operation;
- it doesn’t require welding or perforation during the erection
stage; adjustments shall be done according to the shape of
the lay-out, when ending the line;
- it is a system easy to re-use, dismantle, adjust.
ENERGOMONTAJ S.A
DIVIZIA
INSTALATII ELECTRICE SI Catalog MECANO - G D Pag.
AUTOMATIZARI 6

The main components of the system are:

- simple and double mounting channels of h=45 and h=25,
h=60 on special order, with the length of 300 mmup to 3000 mm
and up to 6000 mm on special order;
- simple and double brackets;
- ladders of 60 mm or 100 mm height and 3000 mm length;
- specific components for assembling;
- fitting components.
The products are manufactured of steel plate and coated
with a zinc corosion proof layer.
Zinc coating can be galvanic or hot dip, thus assuring
good operation in class 3 hostile enviromments, according to
STAS 10128. The products can be also supplied as ready
painted. Those requirements can be detailed at the time when
the order is drawn-up.
Under common agreement, by special order, other pro-
ducts-excepting those included herein can be manufactured.
When choosing components, it shall be considered that
the maximum supporting opening of the ladders is of 2500 mm
and the maximum allowed load is of 149 [daN/m] for ladders
with 100 mm height and 110 [daN/m] for ladders with 60 mm
hight.
Setting of the various mounting channel components, shall
be done with M 12 x (35 ÷ 40) class 8.8 screws and joining
of the ladders shall be done with M 8 x 30, class 8.8 screws.
D
MECANO - G product is in close connection with the
other actual products, clamps, throughs, MECANO -U D manu-
factured by ENERGOMONTAJ I.E.A. under quality conditions
and at competitive prices.
The informations included herein refer to stresses and
supporting loads and are available as a guide that can be
used whenever required.
ENERGOMONTAJ S.A
DIVIZIA
INSTALATII ELECTRICE SI Catalog MECANO - G D Pag.
AUTOMATIZARI
7

3. Quality Assurance

The product can be manufactured by request according

to a quality assurance system implemented within IEA
frameworks:
- Quality assurance system according to STAS ISO 9000.
- Quality assurance system based on Low no. 6 / 1982, that
is, the products will be included in category IV, according to NRAC
AQ.04.
If the order doesn’t state the quality assurance system,
the product shall be manufactured in normal conditions.

4. Encoding

In agreement with ENERGOMONTAJ I.E.A. encoding

D
system, an item belonging to MECANO - G product is
encoded as follows:

[Link] - YY

Numerical code for the item.

Allphabetical for the item.
D
MECANO - G code.

5. Ordering

When ordering, please state clearly product code, item

denomination, item alphanumeric code, the hostile environe-
ment class where it shall be used, if class 3 is not required.
If necessary, the quality assurance system to be applied when
manufacturing, shall be mentioned.
Exemple: C.01 Double mounting MM-83, according to
ISO 9000.
ENERGOMONTAJ S.A DIVIZIA
INSTALATII ELECTRICE SI Catalog MECANO - G D Pag.
AUTOMATIZARI
8

6. Delivery
D
MECANO - G can be delivered only by our company,
as it is the property of ENERGOMONTAJ I.E.A., being protected
according to the Low of the State Office for Inven-
tions and Marks.
The products will be supplied as packed and preserved,
according to the storage and transport conditions specified
by the Customer.

D
MECANO - G can be used for a various range of
applications, so that your problems can be solved too.
For more details and for assistance during designing
stage, please contact I.E.A. Designing Department.

D
-Registered trade mark..
ENERGOMONTAJ S.A
DIVIZIA
INSTALATII ELECTRICE Catalog MECANO - G D Pag.
SI AUTOMATIZARI 9

CUPRINS
Pag

1. Memoriu de prezentare a sistemului

MECANO - G D
- Forme si dimensiuni de montanti . . . . . . . . . . 7
- Mãrimi statice pentru axele de încovoiere . . . . . . . 17
- Elemente de calcul si dimensionarea
montantilor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
- Sarcini recomandate pentru transcab
h = 100 mm si h = 60 mm . . . . . . . . . . . . . . . . . . . 19
- Capac pentru montant MP.70 . . . . . . . . . . . . . . . 19

2. Montanti simpli
- Montant simplu MM.1x; MM.2x; MM.3X.. . . . . . . 20
- Montant simplu gãurit MM.4x; MM5x; MM.6x . . . 20
- Montant perforat MP.1x . . . . . . . . . . . . . . . . . . . . 20
- Montant perforat MP 8X . . . . . . . . . . . . . . . . . . 20

3. Montanti dubli
- Montant dublu MM.7x;MM.8x; MM.9x. . . . . . . . . . 21
- Montant dublu MC.1x. . . . . . . . . . . . . . . . . . . . . . 21
- Montant dublu MN.0x÷MN.2x . . . . . . . . . . . . . . . . 21
- Montant dublu MN.3x÷MN.5x . . . . . . . . . . . . . . . . 21
- Montant dublu MM 108x cu suruburi . . . . . . . . . . 21
4. Console
- Consolã simplã MS.20 ÷ MS23 . . . . . . . . . . . . . . 22
- Consolã simpla scurta MS.50. ÷ MS.54. . . . . . . . 22
- Consolã MB.0Y . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
- Consola MB.1.2 . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
- Consolã cu talpa MB.0.3. . . . . . . . . . . . . . . . . . . 23
- Consolã cu talpa MB.3.1. . . . . . . . . . . . . . . . . . . 23
- Consolã cu talpa MB.3.2. . . . . . . . . . . . . . . . . . . 23
- Consolã cu talpa MB.3.3 . . . . . . . . . . . . . . . . . . . 24
- Consolã cu talpa MB.3.4 . . . . . . . . . . . . . . . . . . . 24
- Consola cu talpa MB.3.5. . . . . . . . . . . . . . . . . . . 24
- Consolã cu talpa MI.1.1÷1.6. . . . . . . . . . . . . . . . . 25
- Consolã Mecano G pt. montaj scara
- Mecano U MI.7.1÷MI.7.5. . . . . . . . . . . . . . . . . . . . 25
- Consolã mica cu talpa MI.2.1÷2.3. . . . . . . . . . . . . . 25
- Consolã MB.01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
- Consolã MI dreapta MI.3.1÷MI.3.4 . . . . . . . . . . . . . 26
- Consolã MI stanga MI.4.1÷MI.4.4 . . . . . . . . . . . . . 26
- Consolã mica MI dreapta MI.5.1÷MI.5.3. . . . . . . . . 26
- Consolã mica MI stanga MI.6.1÷MI.6.3 . . . . . . . . 26
- Consolã intarita MK.2.0÷MK.2.3. . . . . . . . . . . . . . 27
- Consolã intarita scurta MK.5.0÷MK.5.2 . . . . . . . . 27
- Consolã perforatã L MF, MP. . . . . . . . . . . . . . . . . 27
- Consolã oscilantã MO.1x . . . . . . . . . . . . . . . . . . . 28
- Consolã oscilantã MO.0x. . . . . . . . . . . . . . . . . . . 28
- Consolã dublã MW.2.1÷MW.2.5 . . . . . . . . . . . . . 28

.
ENERGOMONTAJ S.A
DIVIZIA
INSTALATII ELECTRICE Catalog MECANO - G D Pag.
SI AUTOMATIZARI 10

- Consolã dreapta MH.0.1÷MH.0.4 . . . . . . . 29

- Consolã stânga MH.1.1÷MH.1.4. . . . . . . . 29
- Consolã stânga-dreapta MH.6.0÷MH.6.3 . . 29
- Consolã dublã scurtã MW.5.1÷MW.5.3. . . 30
- Consolã dublã MW.6.0÷MW.6.5 . . . . . . . . 30
- Consolã cu talpã MW.4.0 . . . . . . . . . . . . . . 30
- Consolã cu talpã MB.4.1 . . . . . . . . . . . . . . 31
- Consolã cu talpã MB.4.2 . . . . . . . . . . . . . . 31
- Consolã cu talpã MB.4.3 . . . . . . . . . . . . . . 32
- Consolã cu talpã MB.4.4 . . . . . . . . . . . . . . 32
- Consolã cu talpã MB.4.5 . . . . . . . . . . . . . . 32

5. Elemente de asamblare
- Placã tip MJ.0.1. . . . . . . . . . . . . . . . . . . . . . 33
- Placã tip MJ.0.2 . . . . . . . . . . . . . . . . . . . . . 33
- Placã tip MJ.0.3. . . . . . . . . . . . . . . . . . . . . . 33
- Placã tip MJ.0.4. . . . . . . . . . . . . . . . . . . . . . 33
- Profil tip MC.2.1. . . . . . . . . . . . . . . . . . . . . . 34
- Placã tip MT.0.4 . . . . . . . . . . . . . . . . . . . . . . 34
- Placã tip MT.0.5. . . . . . . . . . . . . . . . . . . . . . 34
- Placã tip MK.0.4. . . . . . . . . . . . . . . . . . . . . . 34
- Coltar tip ML.2.3. . . . . . . . . . . . . . . . . . . . 35
- Coltar tip ML.2.2. . . . . . . . . . . . . . . . . . . . 35
- Coltar tip ML.2.4. . . . . . . . . . . . . . . . . . . . 35
- Coltar tip MV.0.1,1.1.,2.1. . . . . . . . . . . . . . 35
- Coltar tip MV.0.2,1.2.,2.2. . . . . . . . . . . . . . 36
- Coltar tip MV.0.3, 1.3 . . . . . . . . . . . . . . . . 36
- Coltar tip MV.0.4 . . . . . . . . . . . . . . . . . . . . 36
- Coltar tip MV.1.4, 2.4 . . . . . . . . . . . . . . . . 36
- Ramforsare tip MA.0.4. . . . . . . . . . . . . . . . . 37
- Ramforsare tip MA.1.4 . . . . . . . . . . . . . . . . 37
- Ramforsare tip MA.2.4 . . . . . . . . . . . . . . . . . 37
- Ramforsare tip MR.04 . . . . . . . . . . . . . . . . . 37
- Ramforsare tip ML.0.1÷ML.0.6 . . . . . . . . . . . 38
- Ramforsare tip MR.0.5 . . . . . . . . . . . . . . . . 38
- Ramforsare tip MR.1.4 . . . . . . . . . . . . . . . . . 38
- Ramforsare tip MR.2.4 . . . . . . . . . . . . . . . . . 38
- Profil tip MG.0.1÷MG.0.3 . . . . . . . . . . . . . . . 39
- Profil tip MG.0.4÷MG.0.6 . . . . . . . . . . . . . . . 39
- Profil tip MG.0.7. . . . . . . . . . . . . . . . . . . . . . 39
- Profil tip MG.0.8. . . . . . . . . . . . . . . . . . . . . . 39
- Profil tip MG.0.9. . . . . . . . . . . . . . . . . . . . . . 40
- Profil tip MF.0.1. . . . . . . . . . . . . . . . . . . . . . . 40
- Profil tip MF.0.2. . . . . . . . . . . . . . . . . . . . . . 40
- Profil tip MF.0.3. . . . . . . . . . . . . . . . . . . . . . . 40
- Profil tip MF.0.9. . . . . . . . . . . . . . . . . . . . . . 41
- Profil tip MF.1.2. . . . . . . . . . . . . . . . . . . . . . . 41
- Profil tip MF.1.3. . . . . . . . . . . . . . . . . . . . . . 41
- Profil tip MF.2.2. . . . . . . . . . . . . . . . . . . . . . . 41
- Profil tip MF.2.3. . . . . . . . . . . . . . . . . . . . . . 42
- Profil tip MF.5.3. . . . . . . . . . . . . . . . . . . . . . 42
- Profil tip MF.6.3. . . . . . . . . . . . . . . . . . . . . . 42.
ENERGOMONTAJ S.A
DIVIZIA
INSTALATII ELECTRICE Catalog MECANO - G D Pag.
SI AUTOMATIZARI 11

- Profil tip ML.4.0. . . . . . . . . . . . . . . . . . . . . . . 43

- Profil tip ML.4.1. . . . . . . . . . . . . . . . . . . . . . 43
- Profil tip ML.4.2. . . . . . . . . . . . . . . . . . . . . . 43
- Profil tip ML.4.3. . . . . . . . . . . . . . . . . . . . . . 43
- Profil tip ML.4.4. . . . . . . . . . . . . . . . . . . . . . 44
- Profil tip MK.0.1 . . . . . . . . . . . . . . . . . . . . . 44
- Profil tip MK.0.2 . . . . . . . . . . . . . . . . . . . . . 44
- Profil tip MK.0.6 . . . . . . . . . . . . . . . . . . . . . 44
- Profil tip MK.0.7 . . . . . . . . . . . . . . . . . . . . . 45
- Profil tip MU.0.1 . . . . . . . . . . . . . . . . . . . . . 45
- Profil tip MU.0.2 . . . . . . . . . . . . . . . . . . . . . 45
- Profil tip MU.0.3 . . . . . . . . . . . . . . . . . . . . . 45
- Profil tip MU.0.4 . . . . . . . . . . . . . . . . . . . . . 46
- Talpã tip MT.0.1. . . . . . . . . . . . . . . . . . . . . . 46
- Talpã tip MT.0.2. . . . . . . . . . . . . . . . . . . . . . 46
- Talpã tip MT.0.3. . . . . . . . . . . . . . . . . . . . . . 47
- Talpã tip MT.0.8. . . . . . . . . . . . . . . . . . . . . . 47
- Talpã tip MT.0.9. . . . . . . . . . . . . . . . . . . . . . 47
- Talpã tip MT.10. . . . . . . . . . . . . . . . . . . . . . 48
- Montant cu talpã MC.0.1. . . . . . . . . . . . . . . 48
- Montant cu talpã MC.0.2. . . . . . . . . . . . . . . 48
- Montant cu talpã MS.6.0÷MC.6.2. . . . . . . . . 49
- Piuliþã specialã MP.0.1÷MP.10. . . . . . . . . . 49
- Piesã rotire MU.0.5 . . . . . . . . . . . . . . . . . . 49

6. Elemente liniare
- Traseu liniar TS 10÷17. . . . . . . . . . . . . . . 50
- Traseu liniar TS 50÷57. . . . . . . . . . . . . . . 50
- Cruce TT 20÷27. . . . . . . . . . . . . . . . . . . . . . . . . 51
- Teu orizontal TT 10÷17. . . . . . . . . . . . . . . . . . . . 52
- Ramificaþie dreapta TR 30÷33 . . . . . . . . . . . . 53
- Ramificaþie stânga TR.40÷43. . . . . . . . . . . . . 53

7. Elemente curbe
- Cot vertical exterior 30° TA 10÷17 . . . . . . 54
- Cot vertical interior 30° TV 10÷17. . . . . . . . . . 54
- Cot vertical exterior 45° TA 20÷27 . . . . . . . . 55
- Cot vertical interior 45° TV 20÷27. . . . . . . . . 55
- Cot vertical exterior 60° TA30÷37 . . . . . . . . . 56
- Cot vertical interior 60° TV 30÷37. . . . . . . . . 56
- Cot vertical exterior 90° TA 40÷47. . . . . . . . . 57
- Cot vertical interior 90° TV 40÷47. . . . . . . . . 57
- Cot orizontal 30° TC 10÷17 . . . . . . . . . . . . . . 58
- Cot orizontal 45° TC 20÷27. . . . . . . . . . . . . . . 58
- Cot orizontal 60° TC 30÷37. . . . . . . . . . . . . . . 59
- Cot orizontal 90° TC 40÷47. . . . . . . . . . . . . . 59

8. Elementa de reducere
- Reductie dreaptã TR 10÷15. . . . . . . . . . . . . . 60
- Reductie stânga TR 00÷05. . . . . . . . . . . . . . . 60
- Reductie simetricã TR 20 ÷25. . . . . . . . . . . . . 61
ENERGOMONTAJ S.A
DIVIZIA
INSTALATII ELECTRICE SI Catalog MECANO - G D Pag.
AUTOMATIZARI 12

9. Capace
- Capac reducþie simetricã TM.33÷38 . . . . . . . . . . 61
- Capac traseu liniar TM.01÷04 . . . . . . . . . . . . . . . 62
- Capac traseu liniar TM.71÷74 . . . . . . . . . . . . . . . 62
- Sistem fixare capac TC.96 . . . . . . . . . . . . . . 62
- Capac teu TN.11÷18 . . . . . . . . . . . . . . . . . . . . . . 63
- Capac cruce TN .01÷08. . . . . . . . . . . . . . . . . . . . 63
- Capac ramificaþie dreapta TM .43÷46. . . . . . . . . 64
- Capac ramificaþie stânga TM .39÷42. . . . . . . . . . 64
- Capac cot vertical exterior TM.47÷62 . . . . . . . . 65
- Capac cot vertical exterior TW.33÷48 . . . . . . . . 65
- Capac cot vertical interior TD.43÷46 . . . . . . . . . . 66
- Capac cot vertical interior TW.17÷81. . . . . . . . .. 66
- Capac cot orizontal TD.40÷42 . . . . . . . . . . . . . .. 67
- Capac cot orizontal TW.01. . . . . . . . . . . . . 67
- Capac reducþie dreapta TM 27÷32. . . . . . . . . . . 68
- Capac reducþie stânga TM 21÷26. . . . . . . . . . . ..68

10. Elemente auxiliare

- Bridã cruce de fixare TB .01. . . . . . . . . . . . . 69
- Bridã fixare interioarã TB.02 . . . . . . . . . . . . . 69
- Bridã fixare exterioarã TB.03 . . . . . . . . . . . . 69
- Plãcuþã TC .02. . . . . . . . . . . . . . . . . . . . . . . . . 69
- Eclisã legãturã TE.01 . . . . . . . . . . . . . . . . . . . 70
- Eclisã expansiune TE .03. . . . . . . . . . . . . . . . 70
- Eclisã legãturã TE.02 . . . . . . . . . . . . . . . . . . . 70
- Eclisã expansiune TE .04. . . . . . . . . . . . . . . . 71
- Eclisã continuitate electricã TE .05. . . . . . . . 71
- Eclisã continuitate electricã specialã TE .06. . 71
- Eclisã TE .10. . . . . . . . . . . . . . . . . . . . . . . . . . 72
- Element de închidere TI .04. . . . . . . . . . . . . . 72
- Piesã coborâre cablu TD.8.0-81 . . . . . . . . . . . . . 73
- Terminal orb TD.00÷03 . . . . . . . . . . . . . . . . . . . . 73
- Cot ajustabil vertical TV.01 . . . . . . . . . . . . . . 73
- Bridã siguranþã TB .05. . . . . . . . . . . . . . . . . . 73
ENERGOMONTAJ S.A
DIVIZIA
INSTALATII ELECTRICE SI
Catalog MECANO - G D Pag.
AUTOMATIZARI 13

CONTENTS
1. Tehnical report for MECANO - G D system
- Shapes and dimensions of upright
beams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
- Static ranges for bending axles . . . . . . . .. . . . . . 17
- Formula and dimensioning of upright
beams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
- Recomanded stress for transcab
h = 100 mm and h = 60 mm . . . . . . . . . . . . . . . . .19
- MP.70 cover mounting frame . . . . . . . . . . 19

2. Simple mounting frame

- MM.1x,MM.2x,MM.3x simple mounting
frame. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..20
- MM.4x,MM.5x,MM.6x perforated mounting
frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
- MP.1x sloted mounting frame . . . . . . . . . . . . . . . 20
- MP.8X sloted mounting frame . . . . . . . . . . . . . . . .20

3. Double mounting frame

- MM.7x,MM8x,MM9x ,double mounting
frame. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
- MC.1x double mounting frame . . . . . . . . . . . . . . .21
- MN.3x,MN.4x,MN.5x double mounting
frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
- MM108x double mounting frame with screws. . . . .21

4. Simple bracket
- MS.2.0÷MS.2.3 simple bracket . . . . . . . . . . . . . . 22
- MS.5.0÷MS.5.4 short simple bracket . . . . . . . . . . 22
- MB.0y bracket . . . . . . . . . . . . . . . . . . . . . .. . . . . .22
- MB.1.2 bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
- MB.0.3 bracket with flat base . . . . . . . . . . . . . . . . . 23
- MB.3.1 bracket with flat base . . . . . . . . . . . . . . . . . 23
- MB.3.2 bracket with flat base . . . . . . . . . . . . . . . . . 23
- MB.3.3 bracket with flat base . . . . . . . . . . . . . . . . . 24
- MB.3.4 bracket with flat base . . . . . . . . . . . . . . . . .24
- MB.3.5 bracket with flat base . . . . . . . . . . . . . . . . . 24
- MI.1.1÷MI.1.6 bracket with flat base . . . . . . . . . . . . 25
- MI.7.1÷MI.7.5 Mecano G mounting bracket for
Mecano U ladder mounting. . . . . . . . . . . . . . . . . . . 25
- MI.2.1÷MI.2.3 small bracket provided with flat
base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
- MB.0.1 bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
- MI right bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
- MI left bracket . . . . . . . . . . . . . . . . . . . . . .. . . . . .26
- MI small right bracket . . . . . . . . . . . . . . . . . . . . . . .26
- MI small left bracket . . . . . . . . . . . . . . . . . . . . . . . 26
- MK.2.0÷MK.2.3 reinforced bracket . . . . . . . . . . . . 27
- MK.5.0÷MK.5.2 short reinforced bracket . . . . . . . 27
- L slotted bracket. . . . . . . . . . . . . . . . . . . . . .. . . . . .27
- MO.1x adjustable bracket . . . . . . . . . . . . . . .. . . . 28
ENERGOMONTAJ S.A
DIVIZIA
INSTALATII Catalog MECANO - G D Pag.
ELECTRICE SI 14

- MO.0x oscillatory bracket . . . . . . . .. . . . . . . . . . . . 28

- MW.2.1÷MW.2.5 double bracket . . . . . . . . . . . . . . 28
- MH.0.1÷MH.0.4 right bracket . . . . . . . . . . . . . . . . . 29
- MH.1.1÷MH.1.4 left bracket . . . . . . . . . . . . . . . . . . 29
- MH left-right bracket . . . . . . . . . . . . . . . . . . . . . . . 29
- MW.5.1÷MW.5.3 short double bracket. . . . . . . . . .30
- MW.6.0÷MW.6.5 double bracket . . . . . . . . . . . . . .30
- MW.4.0 double bracket . . . . . . . . . . . . . . . . . . . . .30
- MB.4.1 mounting frame with base plate . . . . . . . . .31
- MB.4.1 mounting frame with base plate . . . . . . . . .31
- MB.4.2 mounting frame with base plate . . . . . . . . .31
- MB.4.3 mounting frame with base plate . . . . . . . . .32
- MB.4.4 mounting frame with base plate . . . . . . . . . 32
- MB.4.5 mounting frame with base plate . . . . . . . . .32

5. Assembling elements
- MJ.0.1 plate . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 33
- MJ.0.2 plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
- MJ.0.3 plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
- MJ.0.4 plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
- MC.2.1 type profile . . . . . . . . . . . . . . . . . . . . . . . . . 34
- MT.0.4 type plate . . . . . . . . . . . . . . . . . . . . . . . . . . 34
- MT.0.5 type plate . . . . . . . . . . . . . . . . . . . . . . . . . . 34
- MK.0.4 type plate . . . . . . . . . . . . . . . . . . . . . . . . . . 34
- ML.2.3 corner bracket. . . . . . . . . . . . . . . . .. . . . . .35
- ML.2.2 corner bracket. . . . . . . . . . . . . . . . .. . . . . .35
- ML.2.4 corner bracket. . . . . . . . . . . . . . . . .. . . . . 35
- MV.0.1,1.1,2.1 corner bracket. . . . . . . . . . . . . . . .35
- MV.0.2,1.2,2,2 corner bracket . . . . . . . . . . . . . . ..36
- MV.0.3,1.3 corner bracket. . . . . . . . . . . . . . . . . . . .36
- MV.0.4 corner bracket . . . . . . . . . . . . . . . . . . . . 36
- MV.1.4,2.4 corner bracket . . . . . . . . . . . . . . . . . 36
- MA.0.4 reinforcement . . . . . . . . . . . . . . . . . . . . . . .37
- MA.1.4 reinforcement . . . . . . . . . . . . . . . . .. . . . . . 37
- MA.2.4 reinforcement . . . . . . . . . . . . . . . . . . . . . . .37
- MR.0.4 reinforcement . . . . . . . . . . . . . . . . . . . . . . 37
- ML.0.1÷ML.0.6 reinforcement . . . .. . . . . . . .. . . . . .38
- MR.0.5 reinforcement . . . . . . . . . . . . . . . . . . . . . . .38
- MR.1.4 reinforcement . . . . . . . . . . . . . . . . . . . . . . . 38
- MR.2.4 reinforcement . . . . . . . . . . . . . . . . . . . . . . .38
- MG.0.1÷MG.0.3 type profile . . . . . . . . . . . . . . . . . 39
- MG.0.4÷MG.0.6 type profile . . . . . . . . . . . . . . . . . 39
- MG.0.7 type profile . . . . . . . . . . . . . . . . .. .. . . . . . 39
- MG.0.8 type profile . . . . . . . . . . . . . . . . .. .. . . . . . 39
- MG.0.9 type profile . . . . . . . . . . . . . . . . .. .. . . . . . 40
- MF.0.1 type profile . . . . . . . . . . . . . . . . .. . . . . . . .40
- MF.0.2 type profile . . . . . . . . . . . . . . . . .. . . . . . . .40
- MF.0.3 type profile . . . . . . . . . . . . . . . . .. . . . . . . . 40
- MF.0.9 type profile . . . . . . . . . . . . . . . . .. . . . . . . . 41
- MF.1.2 type profile . . . . . . . . . . . . . . . . .. . . . . . . . 41
- MF.1.3 type profile . . . . . . . . . . . . . . . . .. . . . . . . . 41
ENERGOMONTAJ S.A
DIVIZIA
INSTALATII ELECTRICE Catalog MECANO - G D Pag.
SI AUTOMATIZARI 15

- MF.2.2 type profile . . . . . . . . . . . . . . . . . . .. . . . . 41

- MF.2.3 type profile . . . . . . . . . . . . . . . . . . . . . . . . 42
- MF.5.3 type profile . . . . . . . . . . . . . . . . . . . . . . . . .42
- MF.6.3 type profile . . . . . . . . . . . . . . . . . . . . . . . . .42
- ML.4.0 type profile . . . . . . . . . . . . . . . . . . . . . . . . 43
- ML.4.1 type profile . . . . . . . . . . . . . . . . . . . . . . . .43
- ML.4.2 type profile . . . . . . . . . . . . . . . . . . . . . . . . . 43
- ML.4.3 type profile . . . . . . . . . . . . . . . . . . . . . . . . .43
- ML.4.4 type profile . . . . . . . . . . . . . . . . . . . . . . . . 44
- MK.0.1 type profile . . . . . . . . . . . . . . . . . . . . . . . 44
- MK.0.2 type profile . . . .. . . . . . . . . . . . . . . . . . . . . 44
- MK.0.6 type profile . . . . . . . . . . . . . . . . . . . . . . . . 44
- MK.0.7 type profile . . . . . . . . . . . . . . . . . . . . . . . . 45
- MU.0.1 type profile . . . . . . . . . . . . . . . . . . . . . . . . . 45
- MU.0.2 type profile . . . . . . . . . . . . . . . . . . . . . . . . . 45
- MU.0.3 type profile . . . . . . . . . . . . . . . . . . . . . . . . . 45
- MU.0.4 type profile . . . . . . . . . . . . . . . . . . . . . . . . . 46
- MT.0.1 flat base . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
- MT.0.2 flat base . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
- MT.0.3 flat base . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
- MT.0.8 flat base . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
- MT.0.9 flat base . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
- MT.10 bottom. . . . . . . . . . . . . . . . . . . . . . .. . . . . . 48
- MC.01 mounting frame with base plate. . . . . . . . . . 48
- MC.02 mounting frame with base plate. . . . . . . . . . 48
- MS.6.0÷MS.6.2 mounting frame with base
plate . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . .49
- MP.0.1÷MP.10 special nut . . . . . . . . . . . . . . . . . 49
- MU.05 rotary frame . . . . . . . . . . . . . . . . . . . . . . . .49
6. Lineary elements
- TS.10÷17 cable tray . . . . . . . . . . . . . . . . . . . . . . . 50
- TS.50÷57 cable tray . . . . . . . . . . . . . . . . . . . . . . 50
-.TT 20÷27 cross . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
- TT10÷17 horizontal tee elbow . . . . . . . . . . . . . . 52
- TR.30÷33 right branch . . . . . . . . . . . . . . . . . . . . 53
- TR.40÷43 left branch . . . . . . . . . . . . . . . . . . . . . 53
7. Curves elements
- TA10÷17 outer vertical elbow 30° . . . . . . . . . . . 54
- TV10÷17 inner vertical elbow 30° . . . . . . . . . . . 54
- TA20÷27 outer vertical elbow 45° . . . . . . . . . . . 55
- TV 20÷27 inner vertical elbow 45° . . . . . . . . . . . 55
- TA 30÷37 outer vertical elbow 60° . . . . . . . . . . . 56
- TV 30÷37 inner vertical elbow 60°. . . . . . . . . . . 56
- TA 40÷47 outer vertical elbow 90° . . . . . . . . . . 57
- TV 40÷47 inner vertical elbow 90°. . . . . . . . . . . 57
- TC10÷17 horizontal elbow 30° . . . . . . . . . . . . . . 58
- TC20÷27 horizontal elbow 45° . . . . . . . . . . . . . . 58
- TC30÷37 horizontal elbow 60° . . . . . . . . . . . . . . 59
- TC 40÷47 horizontal elbow 90° . . . . . . . . . . . . . 59

8. Reduction elements
- TR10÷15 right offset reduction . . . . . . . . . . . . . 60
- TR00÷05 left offset reduction . . . . . . . . . . . . . . 60
- TR20÷25 symetrical reduction . . . . . . . . . . . . . . 61
ERGOMONTAJ S.A
DIVIZIA
INSTALATII ELECTRICE Catalog MECANO - GD Pag.
SI AUTOMATIZARI 16

9. Covers
- TM.33÷38 symetrical reduction cover . . . . . . . . . 61
- TM 01÷04 cable tray cover . . . . . . . . . . . . . . . . . 62
- TM 71÷74 cable tray cover . . . . . . . . . . . . . . . . . 62
- TC .96 cover fixing clamp . . . . . . . . . . . . . . . . . . 62
- TN.11÷18 tee cover . . . . . . . . . . . . . . . . . . . . . 63
- TN 01÷08 cross cover . . . . . . . . . . . . . . . . . . . . . 63
- TM 43÷46 right branch cover . . . . . . . . . . . . . . 64
- TM.39÷42 left branch cover . . . . . . . . . . . . . . . . 64
- TM.47÷62 outer vertical elbow cover . . . . . . . . 65
- TW.33÷48 outer vertical elbow cover . . . . . . 65
- TD.43÷46 inner vertical elbow cover . . . . . . . . 66
- TW.17÷81 inner vertical elbow cover . . . . . . . . 66
- TD.40÷42 horizontal elbow cover . . . . . . . . . . . 67
- TW.01 horizontal elbow cover . . . . . . . . . . . . 67
- TM.27÷32 right offset cover . . . . . . . . . . . . . . . 68
- TM.21÷26 left offset cover . . . . . . . . . . . . . . . . 68

10. Auxiliary elements

- TB.01 affixing cross strap . . . . . . . . . . . . . . . . . . 69
- TB.02 inner affixing band. . . . . . . . . . . . . . . . . . . 69
- TB.03 outer affixing band . . . . . . . . . . . . . . . . . .69
- TC.02 plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
- TE.01 strap band . . . . . . . . . . . . . . . . . . . . . . . . . .70
- TE.03 expansion strap . . . . . . . . . . . . . . . . . . . . . 70
- TE.02 strap band . . . . . . . . . . . . . . . . . . . . . . . . . .70
- TE.04 expansion strap . . . . . . . . . . . . . . . . . . . . . 71
- TE.05 electric continuity strap band. . . . . . . . . . .71
- TE.06 special electric continuity strap
band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
- TE10 strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
- TI.04 slotted strap band . . . . . . . . . . . . . . . . . . . 72
- TD.8.0-81 cable fastener . . . . . . . . . . . . . . . . . . . 73
- TD00÷03 blind terminal . . . . . . . . . . . . . . . . . . . . .73
- TV.01 ajustable vertical elbow. . . . . . . . . . . . . . . 73
- TB.05 saffety band . . . . . . . . . . . . . . . . . . . . . . . 73
FACILITATI DE PROCURARE
D
MECANO G
PROCUREMENT FACILITIES

-este produs în Bucuresti si este distribuit prin 33 Centre Service.

-are manufactured in Bucharest and distributed from 33 Service Center.

BUCURESTI Str. Ilioara 54, tel. 01/321.33.54, fax 021/321.62.62,

Cod postal 032126
ARAD Str. Vânator 6, Arad, tel. si fax 0257 / 23.28.55,
Cod postal 317217
BACÃU Str. Chimiei 7, Bacau, tel. 0234 /17.28.20, Cod
postal 600289
BORZESTI Oficiul Postal GH. Gherghiu Dej, Jud. Bacau,
tel. 0234/312 680; 0234/ 31.34.83, OPRM 600550
BRASOV Str. Timis Triaj 6, Of. P. 9, Jud. Brasov,
tel. 0268/33.29.70 si fax , Cod postal 500240
BRAZI Comuna Brazi, Jud. Prahova, Cod postal 107080,
tel. 0244/14.71.21
BRÃILA Comuna Chiscani, Jud. Braila, OPRM 810 660,
tel. 0239/691817
CRAIOVA Com. Isalnita, Craiova, Jud. Dolj, tel. 0251/42.15.68
Cod postal 207340
CERNAVODÃ PTTR Cernavoda, C.P. 26, Jud. Constanţa
tel. 0241/23.70.99; 0241/23.73.16;
fax 0241/23.70.99, Cod postal 905200
DOICESTI Com. Doicesti,Jud.Dâmbovita,tel.0245/63.27.12,
Cod poştal 137195
DEVA Com. Mintia, Deva, Jud. Hunedoara,
tel. 0254 /23.64.25, Cod postal 337532
GALATI Str. Smârdan 3, Jud. Galati,tel. 0236/83.31.67, Cod
poştal 800700
GIURGIU C.P 1, Giurgiu, Jud. Giurgiu, Cod poştal 080750,
tel. 0246 /21.63.85
GOVORA Of. P. 3, Rm. Vâlcea, Jud. Vâlcea, OPRM 240390,
tel. 0250/73.26.71
HALÂNGA Com. Halânga, [Link], Jud. Mehedinti,
tel. 0252 /22.72.97, fax 0252 /22.26.71, Cod poştal
227297
HATEG Str. Progresului 38B, Hateg, Jud. Hunedoara, Cod
postal 330044, tel. 0254 / 77.09.90.
 IASI Com. Holboca, [Link], Cod postal 707250,
tel. 0232/29.82.68
ISALNITA Platforma Ind. Isalnita, Craiova, Jud. Dolj, Cod
postal 207340, tel. 0251/ 42.15.68
NAVODARI CET Midia Nãvodari, Jud. Constanţa,
tel. 0241/76.50.46
ORADEA Str. Ogorului 1, Oradea, Jud. Bihor, Cod postal
410554, tel. 0259/42.17.73
PAROSENI Str. Paroseni 20, Vulcan, Jud Hunedoara, Cod
postal 336200, tel. 0254/57.18.06
PITESTI PTTR Prundu, Pitesti, [Link], tel. 0248/63.33.96,
OPRM 110570
PORTILE DE Comuna Gogosu (Ostrov), Jud. Mehedinti, Cod
FIER II postal 227220, tel. 0252 / 31.15.12
ROVINARI Str. Energeticianului 1, Rovinari, Jud. Gorj,
tel. 0253 /37.11.55; fax. 0253 /37.11.56, Cod postal
210 225
RM. VÂLCEA Of.P.3, Rm.Vâlcea, tel. 0250 /71.26.71, OPRM
240 390.
SIRIU Comuna Nehoiu, Jud. Buzãu, Cod postal 125 106,
tel. 0238 /54.84.98
SLATINA [Link], 1, Slatina, Jud. Olt, tel. 0249/ 43.24.88
Cod poştal 230075
SUCEAVA Str. Energeticienilor 1, Suceava, Cod postal 720 166,
tel. 0230 /25.05.70
TURCENI Str. Uzinei 1, Turceni, Jud. Gorj, tel.0253 /33.50.43
Cod postal 217520.
TIMISOARA Calea Sagului 201, Timisoara, Jud. Timis,
tel. 0256/15.29.50, fax 0256/15.29.50, Cod postal
300516
TG. JIU Str. Lotrului 83, Tg. Jiu, Jud. Gorj, Cod poştal
210196, tel. 0253 /24.48.50
ZALAU C.P. 30, Of. P. 4, Zalãu, Jud. Sãlaj, OPRM 450230
tel. 0260 /62.15.95
Consultaţi direct de la telefonul dvs. cel mai apropiat Centru Service.
Consult your local telephone directory for the nearest Service Center.
