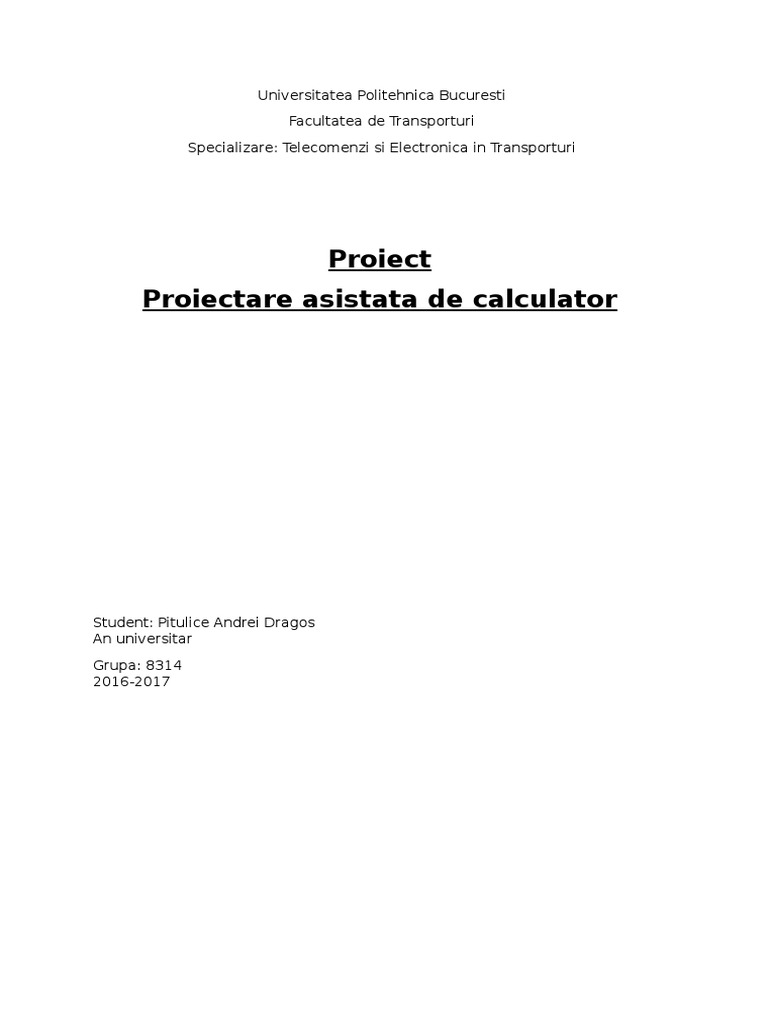

Universitatea Politehnica Bucuresti

Facultatea de Transporturi
Specializare: Telecomenzi si Electronica in Transporturi

Proiect
Proiectare asistata de calculator

Student: Pitulice Andrei Dragos

An universitar
Grupa: 8314
2016-2017
1. Reprezentarea schemei

Schema initiala

Schema in multisim
 2. Listarea fisierului .cir
*proiect pac Pitulice Andrei
V1 10 0 SIN( 0 20 50)
V2 22 0 12
Q4 12 11 9 QPNP
Q1 4 2 1 QPNP
Q3 11 8 13 QNPN
Q2 2 3 7 QNPN
C6 10 0 4.7e-005
C5 9 0 4.7e-005
C1 1 0 6.3e-005
R18 8 0 10000
R14 18 6 10k
R15 0 16 16
C9 20 0 8.2e-008
R17 20 0 10000000
R16 18 0 15000
C8 0 16 2.2e-005
R13 0 14 100000
C7 12 14 1e-007
R12 10 6 1000
R11 13 16 22
R10 12 13 560
R9 10 9 100
R8 9 11 5600
R7 9 8 22000
C4 4 8 1e-009
C3 7 0 2.2e-005
R6 5 0 560
R5 4 5 560
C2 22 3 1e-009
R4 3 0 10000
R3 1 2 5600
R2 1 3 22000
R1 10 1 100
D1 19 20 DINT
U1A NAND (2) $G_DPWR $G_DGND 14 14 19 T_NODELAY IO_STD
U2A NAND (2) $G_DPWR $G_DGND 20 20 21 T_NODELAY IO_STD
U3B NAND (2) $G_DPWR $G_DGND 21 21 23 T_NODELAY IO_STD
.MODEL QPNP pnp
.MODEL QNPN npn
.MODEL DINT D
.MODEL T_NODELAY UGATE
.LIB "dig_io.lib"
.LIB "eval.lib"
.TRAN 1ms 20ms
.PROBE
.END

3. Listarea fisierului .out

**** INITIAL TRANSIENT SOLUTION TEMPERATURE = 27.000 DEG C

******************************************************************************
NODE VOLTAGE NODE VOLTAGE NODE VOLTAGE NODE VOLTAGE
( 1) 0.0000 ( 2) 0.0000 ( 3) 0.0000 ( 4) 0.0000
( 5) 0.0000 ( 6) 0.0000 ( 7)-127.6E-18 ( 8) 0.0000
( 9) 0.0000 ( 10) 0.0000 ( 11) 0.0000 ( 12) 0.0000
( 13) 0.0000 ( 14) 1.5669 ( 16) 0.0000 ( 18) 0.0000
( 19) 1.3499 ( 20) 1.5764 ( 22) 12.0000 ($G_DGND) 0.0000
($G_DPWR) 5.0000 (X$14_AtoD1.1) 1.5614
(X$14_AtoD1.2) .7807 (X$14_AtoD1.3) 2.2823
(X$14_AtoD2.1) 1.5614 (X$14_AtoD2.2) .7807
(X$14_AtoD2.3) 2.2823 (X$20_AtoD1.1) 1.5624
(X$20_AtoD1.2) .7812 (X$20_AtoD1.3) 2.2834
(X$20_AtoD2.1) 1.5624 (X$20_AtoD2.2) .7812
(X$20_AtoD2.3) 2.2834
DGTL NODE : STATE DGTL NODE : STATE DGTL NODE : STATE DGTL NODE :
STATE
(20$AtoD2) : X ( 23) : X ( 14$AtoD) : X ( 19$DtoA) : X
(14$AtoD2) : X ( 21) : X ( 20$AtoD) : X
VOLTAGE SOURCE CURRENTS
NAME CURRENT
V1 0.000E+00
V2 0.000E+00
X$DIGIFPWR.VDPWR -3.419E-02
X$DIGIFPWR.VDGND -2.083E-05
TOTAL POWER DISSIPATION 1.71E-01 WATTS

4. Grafice

5. Cablajul imprimat
